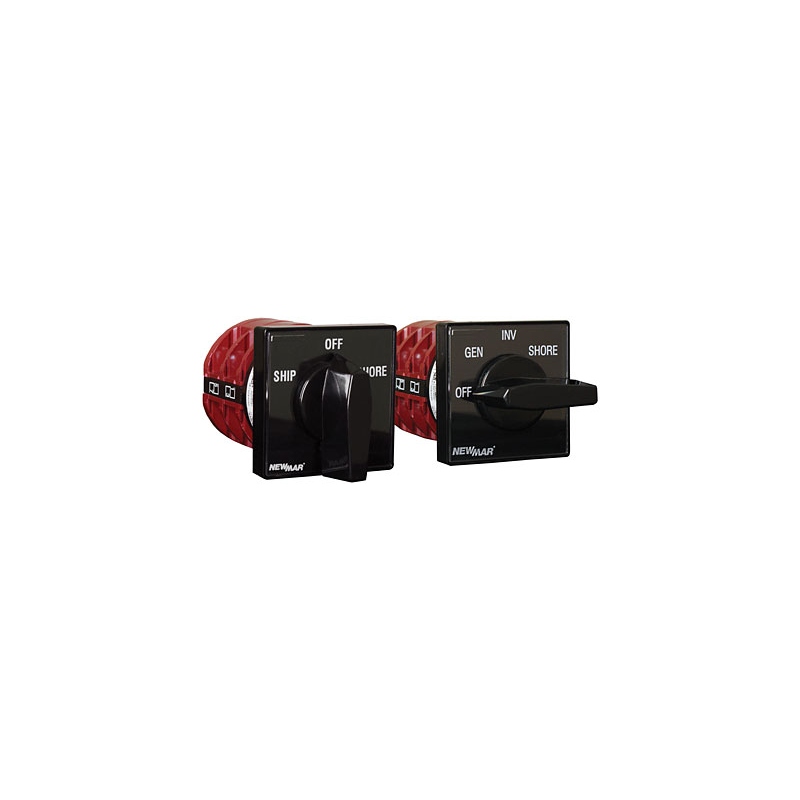

NewMar SS SWITCH7.5 AC Selector Switch 63A 2-Pole Marine

The NewMar SS SWITCH7.5 is a heavy-duty AC source selector switch designed for marine vessels with onboard AC generators and inverters. This essential safety device isolates power source inputs to prevent hazardous situations and equipment damage that can occur when two AC sources are applied to the same circuit simultaneously.

Key Features:

• cUL approved and CE-marked for international compliance
• Heavy-duty contacts with positive step cam mechanism for reliable, low-resistance contact closure
• Compact escutcheon plate with engraved switch position nomenclature
• Rear-mountable in panels up to 1/4" thick
• Standard plate markings: SHIP-OFF-SHORE

Technical Specifications:

• Amperage Rating: 63A at 115/230V
• Number of Poles: 2
• Switch Positions: 2 + OFF position
• Depth Behind Panel: 2-3/8 inches

This robust selector switch provides safe, reliable power management for recreational and commercial marine applications, ensuring only one AC power source feeds your electrical system at any given time.
