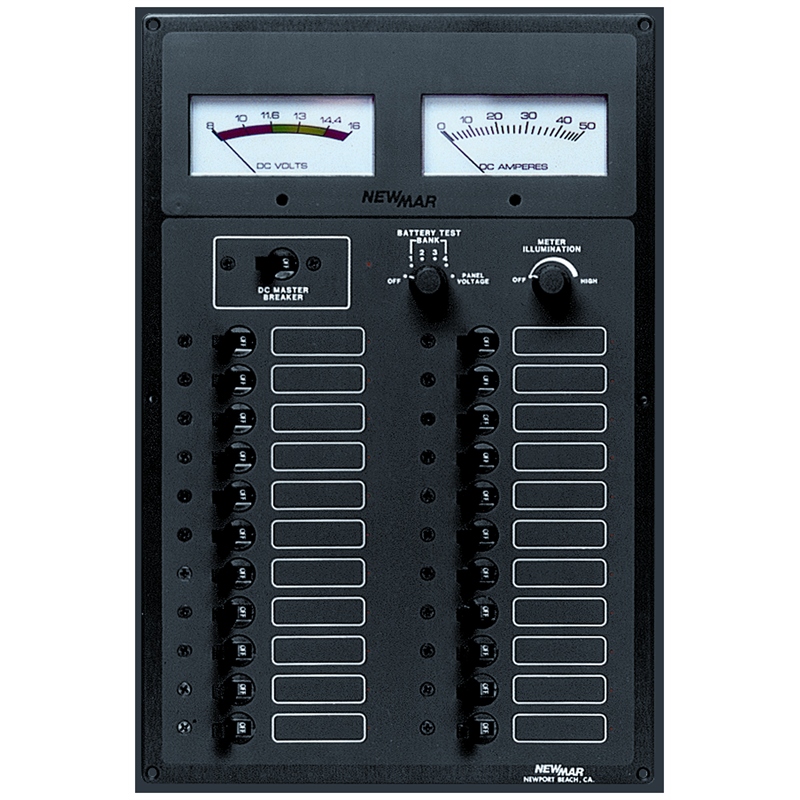

NewMar ES-1 Elite DC Master Control Panel 12V/24V

The NewMar ES-1 Elite DC Panel is a comprehensive master control panel designed for marine and RV electrical systems. This professional-grade DC distribution panel offers extensive circuit capacity and can function as a standalone unit or integrate with the ES-2 panel to create a complete AC-DC control and monitoring system.

Key Features:

• Analog DC voltmeter and ammeter with back-illumination and dimmer control for easy monitoring in any lighting condition
• Available in 12-volt standard configuration with 24-volt option
• 4-bank battery test switch for monitoring multiple battery systems
• Heavy-duty DC master circuit breaker (100 Amp standard; 50 or 75 Amp optional)
• 22 branch circuit capacity with 20 circuits installed as standard
• Flexible circuit breaker configurations: 3 at 5A, 5 at 10A, 6 at 15A, 6 at 20A, or custom specifications

Specifications:

• Dimensions: 10" W × 15" H × 4" D
• Weight: 8 lbs
• Voltage: 12V standard, 24V optional
• Master Breaker: 100A standard (50A or 75A optional)

The ES-1 Elite DC Panel provides reliable power distribution and monitoring for demanding marine and recreational vehicle applications, combining professional-grade functionality with intuitive operation.
