Lenco 15129-001 102F FAST Series 4-1/4" Stroke Trim Tab Actuator 12V

The Lenco 15129-001 is a 102F FAST Series 12-volt electric trim tab actuator engineered for ski boats, tow boats, and wake/surf gate applications. Featuring a 4-1/4" (10.8 cm) stroke, this fast-movement actuator delivers rapid, precise tab positioning at one inch per second — ideal for the quick adjustments demanded by tow sport boating.

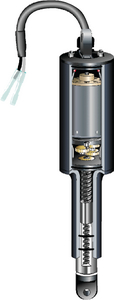

Built on Lenco's proven ballscrew platform, the 15129-001 offers a self-locking ballscrew design that holds tab position without drift, eliminating the need for complicated limit switches or clutches. The ballscrew rotates freely on 12 ball bearings at both ends of its stroke for smooth, reliable operation, and the high-torque motor delivers up to 500 lbs. of pushing force.

Key Features:

• 102F FAST Series — 4-1/4" stroke, fast-movement actuator
• 12-volt DC operation
• Actuator speed: 1 inch per second for rapid response
• High-torque motor rated to 500 lbs. of force
• Waterproof plug-and-play Deutsch connector eliminates water intrusion
• Includes 6-foot cable with Deutsch connector pre-installed
• 5/16" mounting hardware
• Self-locking ballscrew — holds position without drift
• UV-resistant, high-impact glass fiber-filled nylon housing
• Stainless steel ram resists flex under load
• Double O-ring seal for maximum waterproofing
• Fully submersible and maintenance-free

This actuator ships ready to install and is compatible with Lenco's 100 Series control systems. Note: Mounting brackets are sold separately. Actuator extension harnesses with Deutsch connectors are also available separately if additional cable length is needed.
