ICP Solar K2302700 Electric Trailer Brake Assembly 10x2-1/4 Right Hand 3500 lb

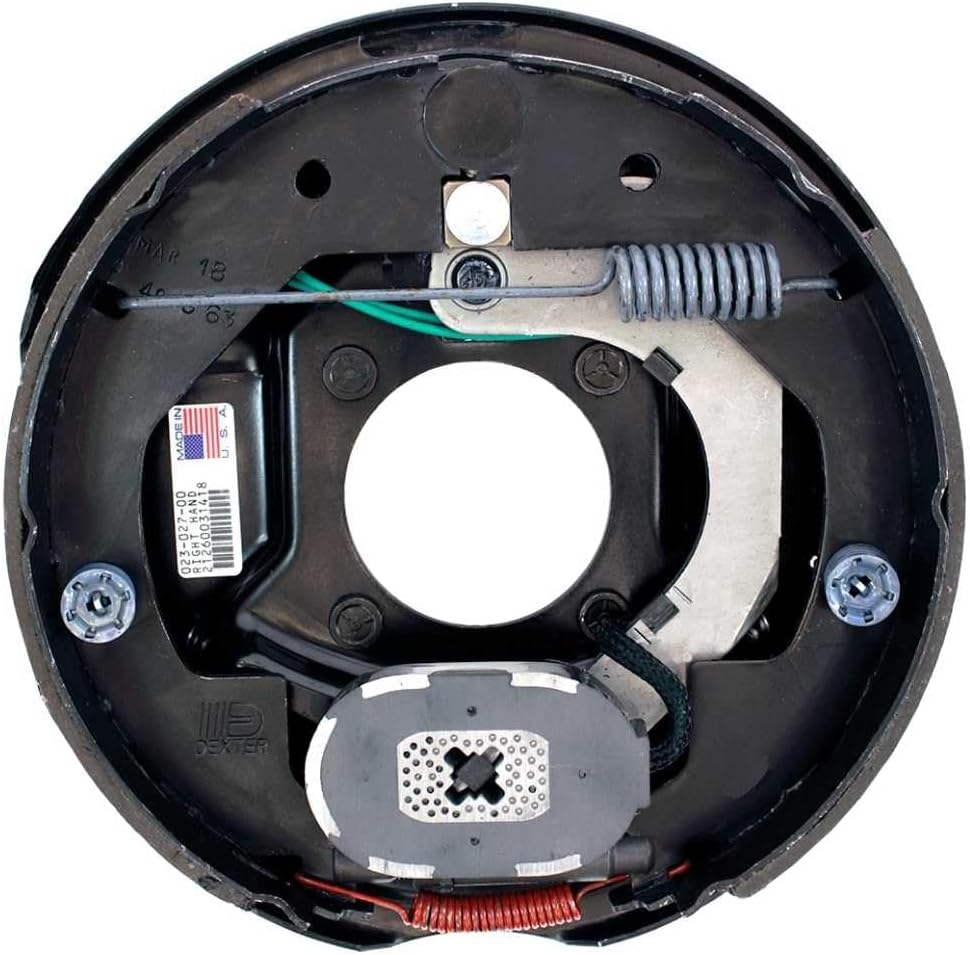

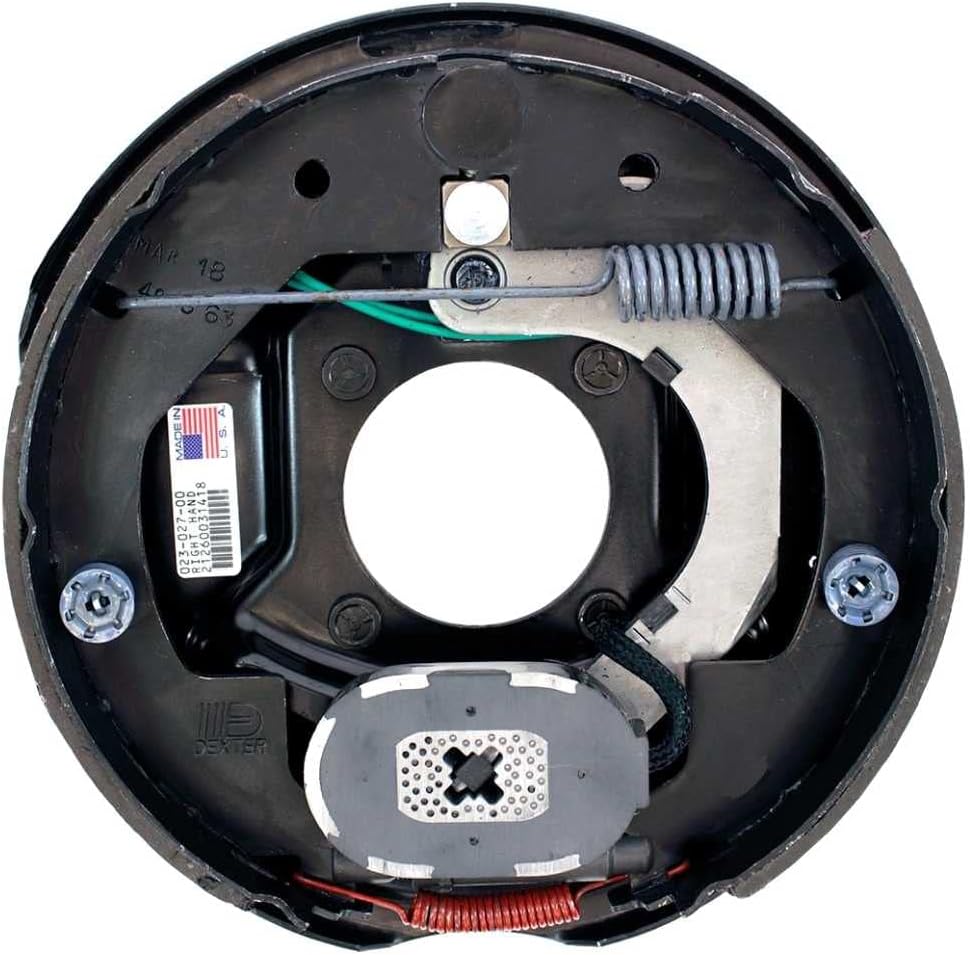

This complete 10-inch by 2-1/4-inch electric trailer brake assembly is designed for right-hand installation on 3,500 lb capacity trailer axles. The fully assembled unit features bonded brake shoes, return springs, and an electromagnet with pre-spliced wires, all mounted to a durable backing plate for quick and easy installation.

Key Features:

• Right-hand (passenger side) brake assembly for 3,500 lb axles
• Fully assembled with brake shoes, springs, and magnet pre-installed
• Manual adjustment design with standard 4-hole flange mounting
• Mounts to axle brake flange with bolt holes on 2-7/8-inch centers
• Compatible with 10-inch drums and wheel sizes 13 to 15 inches
• Rated at 1,750 lbs individual capacity (3,500 lbs per pair)
• Includes mounting hardware, hex nuts, dust plugs, and instructions

This electric brake assembly operates similarly to automotive drum brakes but uses an electromagnet for actuation instead of hydraulic pressure. Compatible with Dexter, AL-KO, Besser Pro, Quality, Lippert, and Rockwell axles. Requires a brake controller for operation. Commonly used on utility trailers, boat trailers, car haulers, camper trailers, and livestock trailers.
