ICP Solar K7131000 Tapered Roller Bearing Cup & Cone Set 14276/14125A

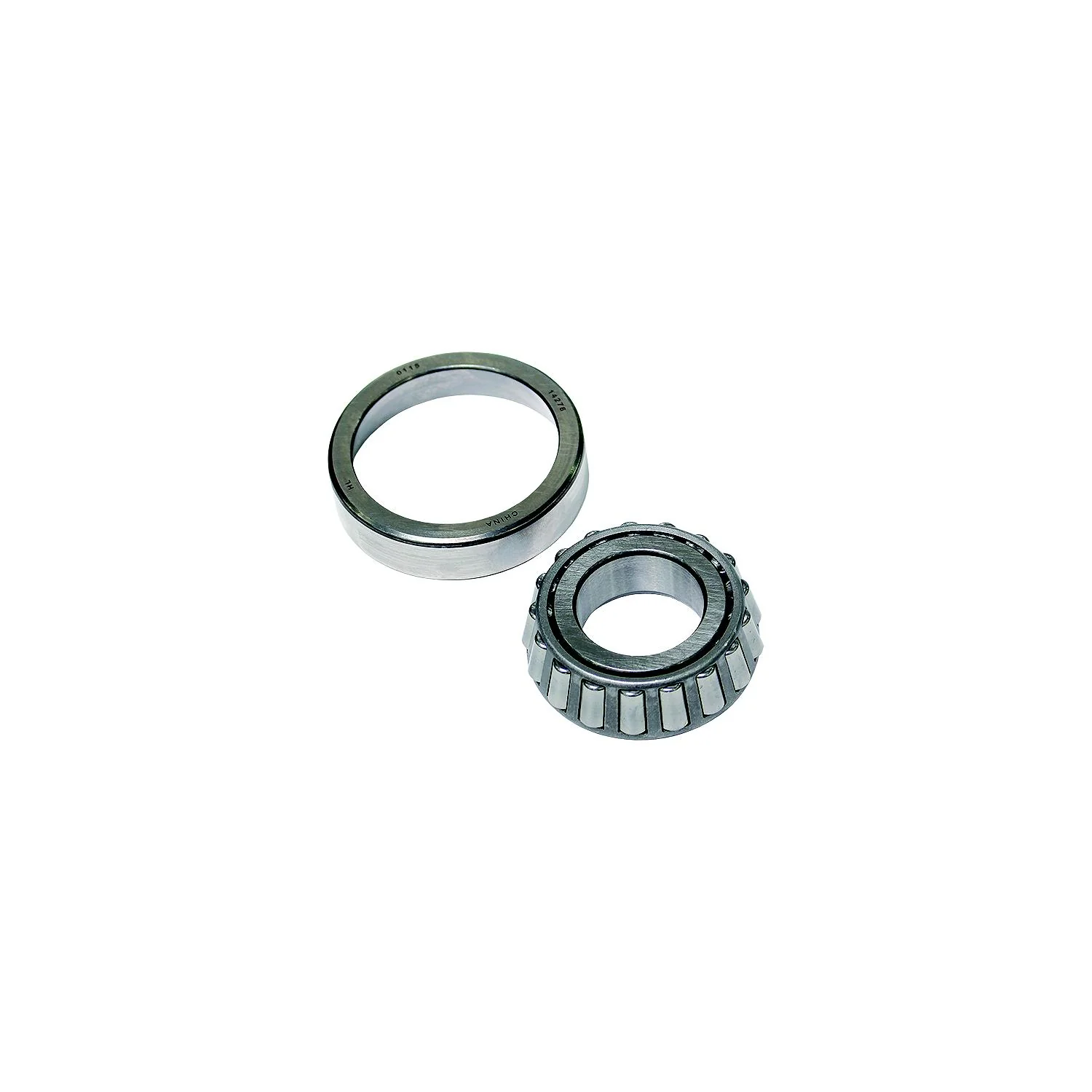

The ICP Solar K7131000 is a tapered roller bearing cup and cone set featuring the industry-standard 14276/14125A designation. This complete bearing assembly consists of two main separable components: the cone (inner ring assembly) and the cup (outer ring), designed to work together as a matched set for optimal performance.

Key Specifications:

• Cone (Inner Ring) Bore Diameter: 1.25 inches (31.75mm)
• Cup (Outer Ring) Outside Diameter: 2.717 inches (69.01mm)
• Overall Bearing Width: 0.7813 inches (19.85mm)
• Cone Width: 0.771 inches
• Cup Width: 0.625 inches
• Construction: Single row, open design
• Material: Case carburized steel for enhanced durability

Features & Benefits:

• Tapered roller design provides high capacity for both radial and single thrust loads
• Conical rollers and raceways arranged to meet at a common apex for optimal load distribution
• Dimensional stability and long service life even in contaminated lubricant conditions
• Durable steel cage construction
• Dimensionally interchangeable with other major bearing manufacturers
• Suitable for heavy-duty applications in trailer axles, automotive, and industrial equipment

This bearing set is commonly used in trailer axle applications, wheel hubs, and other rotating equipment requiring reliable performance under combined radial and axial loads. The separable design allows for easy installation and independent replacement of cone and cup components as needed.
