ICP Solar K0840790 Complete Hub and Drum Kit 4400 lb 6 on 5.5 Bolt Circle

The ICP Solar K0840790 is a complete hub and drum assembly kit designed for 4,400 lb capacity trailer axles. This comprehensive kit includes everything needed for a complete hub installation or replacement on trailers with a 6-lug, 5.5-inch bolt circle pattern.

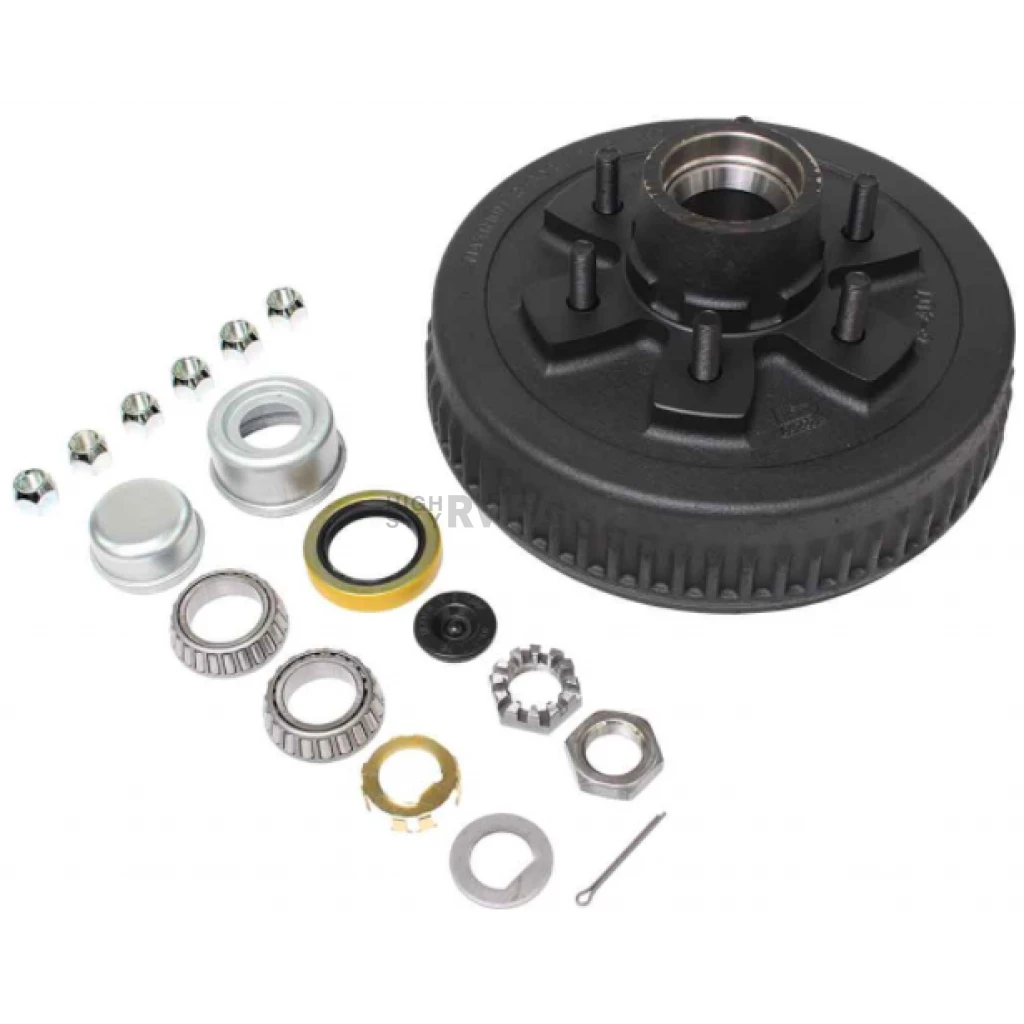

Complete Kit Includes:

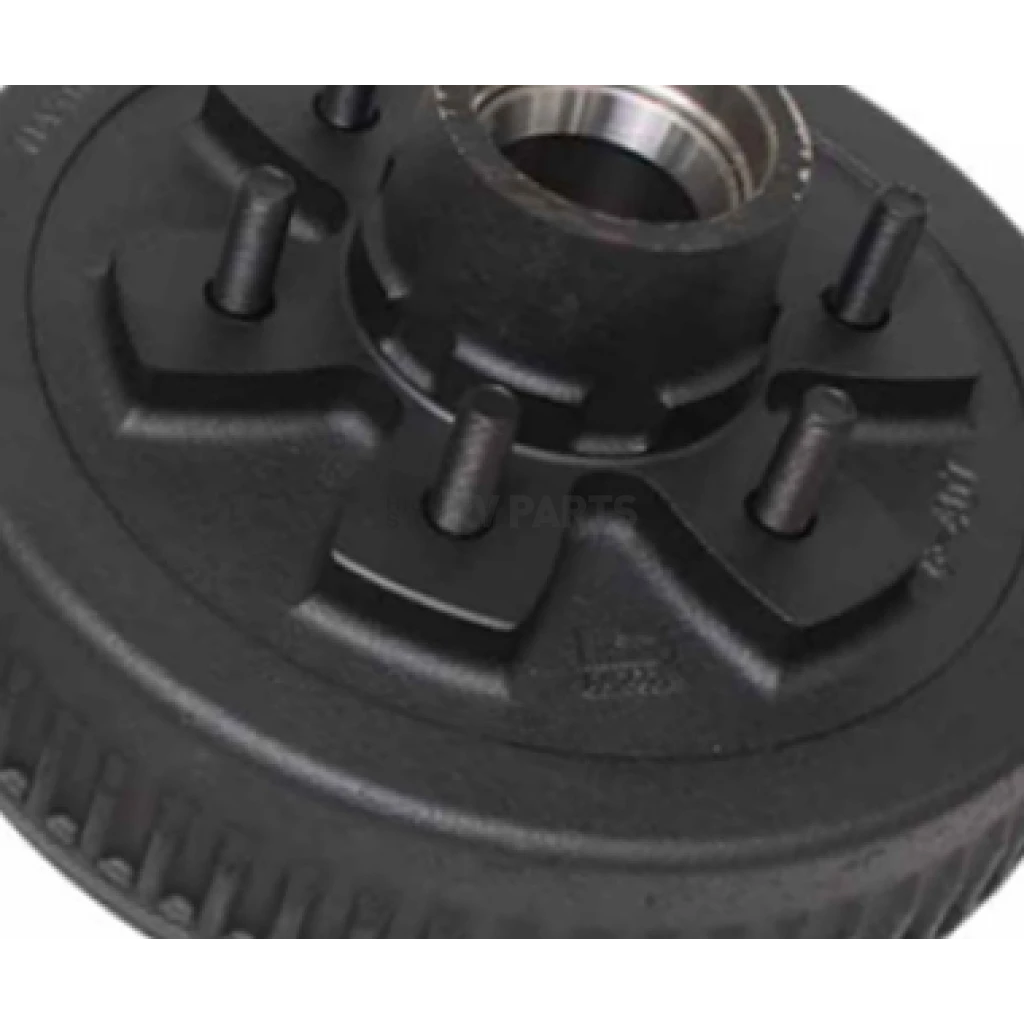

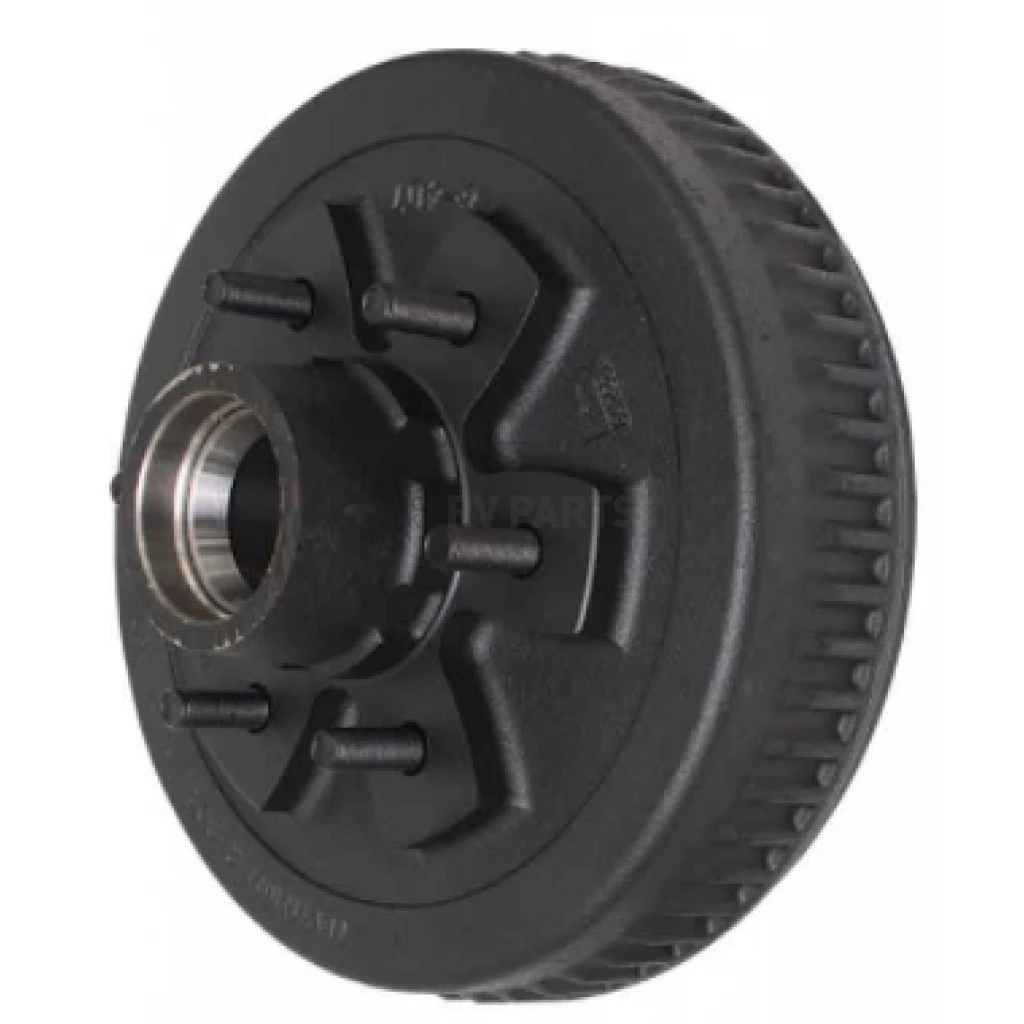

• 10" x 2-1/4" studded hub and drum assembly
• Wheel bearing cones: 1-1/4" (LM67048) and 1-3/8" (L68149)
• 1.718" ID grease seal for leak-free operation
• E-Z Lube grease cap for convenient maintenance
• Slotted nut, D washer, and retainer hardware
• 6 lug nuts for wheel mounting
• Cotter pin and rubber plug

Key Specifications:

• Axle capacity: 4,400 lbs (2,200 lbs per drum)
• Bolt pattern: 6 studs on 5.5" bolt circle
• Stud size: 1/2"-20 thread
• Brake drum size: 10" diameter x 2-1/4" width
• Compatible with both electric and hydraulic brake systems

This factory-complete kit eliminates the need to source individual components separately. The E-Z Lube design allows for easy bearing maintenance without removing the drum. Ideal for trailer repair, axle replacement, or upgrading older hub assemblies.
