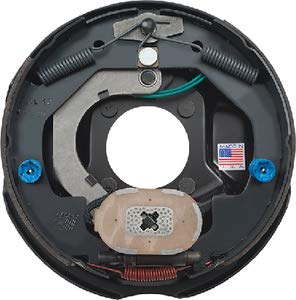

ICP Solar K2302600 10" x 2-1/4" Electric Brake Assembly 3500 lbs Left Hand

The ICP Solar K2302600 is a complete 10-inch by 2-1/4-inch electric brake assembly designed for trailer axles rated at 3,500 pounds capacity per pair. This left-hand brake kit provides reliable stopping power for light-duty trailers including recreational vehicles, utility trailers, and boat trailers.

Key Features:

• 10" x 2-1/4" electric drum brake assembly for left-hand (driver side) mounting
• Rated for 3,500 lbs maximum capacity per pair
• Complete assembly includes backing plate with bonded brake shoes, electromagnet with pre-wired leads, return springs, actuating lever, and mounting hardware
• 4-bolt mounting pattern with 2-7/8" bolt circle fits standard Dexter, Lippert, and AL-KO hub and drum assemblies
• Self-adjusting design eliminates the need for manual brake adjustment
• Green wire magnet with non-polarized connection allows either wire to be used as ground or power
• Fits 13" to 15" wheel sizes

This electric brake assembly operates similarly to automotive drum brakes but uses an electromagnet for actuation instead of hydraulic pressure. The braking force can be modulated through the trailer brake controller, providing precise control for varying road and load conditions while reducing brake load on the towing vehicle. Made in the USA to meet rigorous quality standards for the RV and trailer industry.
