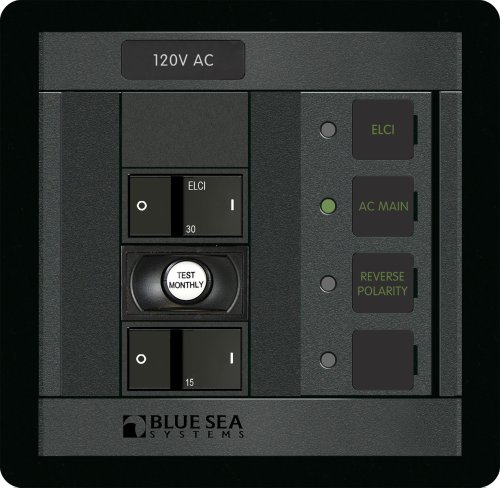

Blue Sea Systems 1190 ELCI Main Circuit Breaker Panel 30A Double Pole with 1 Position

The Blue Sea Systems 1190 ELCI Main Circuit Breaker Panel provides comprehensive overcurrent and leakage protection for marine shore power systems. This panel features a 30A AC ELCI (Equipment Leakage Circuit Interrupter) main residual current circuit breaker with 30mA leakage trip amperage, meeting ABYC E-11 standards for whole boat shore power protection.

Key Features:

• 30A AC ELCI main double pole circuit breaker with 30mA residual current protection
• One 15A AC branch flat rocker circuit breaker for auxiliary circuits
• Red reverse polarity LED indicator for safety monitoring
• Green backlit label positions for enhanced low-light readability
• ON indicating LEDs for circuit status at a glance
• Includes Blue Sea 4206 AC Panel Basic Square Format Label Set
• ABYC E-11 compliant for marine electrical systems

Technical Specifications:

• Nominal Voltage: 120V AC
• Circuit Positions: 1 branch position plus ELCI main
• Dimensions: 4.88" W x 4.75" H x 3.99" D
• Weight: 1.00 lb
• Backlit Labels: Green LED illumination (powered when panel is energized)

Package Includes:

• One A-Series ELCI Main Circuit Breaker - Double Pole 120V AC 30A (Model 3102100)
• One A-Series Flat Rocker Circuit Breaker - Single Pole 15A (Model 7403)
• 4206 AC Panel Basic Square Format Label Set

This panel is ideal for boats, RVs, and marine applications requiring reliable shore power protection with leakage detection. The ELCI technology provides an additional layer of safety by detecting current leakage to ground and tripping the circuit before dangerous conditions occur.
