Blue Sea Systems 5006100 Maxi Fuse Block 30-80A Ignition Protected

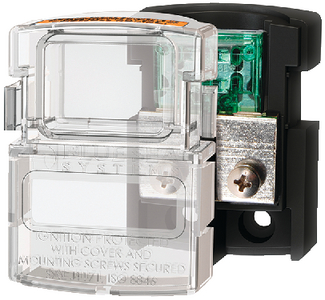

The Blue Sea Systems 5006100 Maxi Fuse Block is an ignition-protected electrical distribution component designed for marine DC electrical systems. This single-position fuse block accommodates standard Maxi-style fuses ranging from 30 to 80 amps, providing reliable overcurrent protection for high-amperage circuits in boats and marine vessels.

Key Features:

• Ignition Protected: Meets ABYC and USCG ignition protection standards for safe use in engine compartments and other hazardous locations
• Maxi Fuse Compatibility: Accepts industry-standard Maxi fuses rated from 30A to 80A
• Flexible Wire Acceptance: Terminal screws accommodate wire sizes from 18 AWG to 4 AWG for versatile installation options
• Multiple Wiring Orientations: Versatile design allows for various wire routing configurations to fit tight spaces
• Integrated Labeling: Built-in label recess helps identify circuit function for easier troubleshooting and maintenance
• Secure Mounting: Mounts with standard #10 screws for reliable installation on bulkheads or panels

Specifications:

• Maximum Amperage: 80A
• Maximum Voltage: 32V DC
• Wire Size Range: 18-4 AWG
• Fuse Type: Maxi
• Mounting Hardware: #10 Screws

This fuse block replaces Blue Sea Systems part number 5006, offering the same reliable overcurrent protection with updated design features. Ideal for windlasses, thrusters, high-output alternators, inverters, and other high-current marine electrical applications.
