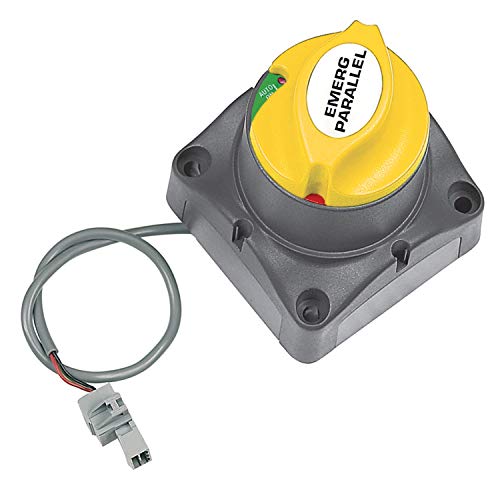

BEP Marine 701-MDVS Dual Operation Voltage Sensitive Switch 12V 275A Motorized

The BEP Marine 701-MDVS Dual Operation Voltage Sensitive Switch (VSS) automatically manages dual battery bank charging for optimal performance and reliability. This intelligent switch senses connected battery bank voltage and provides efficient charging of the second bank while maintaining independent battery isolation when needed.

The VSS automatically combines or isolates battery banks based on the presence of a charging source such as an engine alternator or battery charger. It features a remotely activated emergency parallel connection function that allows you to combine both battery banks in critical situations using a momentary dash-mounted button. The emergency parallel mode engages for 10 minutes, then maintains connection if voltage remains sufficient or disengages if voltage drops.

Key Features:

• Dual battery sensing technology for intelligent battery management
• Manual override option with remote emergency parallel function
• Low power consumption at less than 6mA draw
• Ignition protected for marine safety compliance
• On/Off switching operation with motorized control
• Marine-grade construction with tinned copper conductors
• Stainless steel hardware resists corrosion
• High temperature, fiber-reinforced plastic housing
• Recess or surface mount installation options

Technical Specifications:

• Voltage: 12V DC
• Continuous Rating: 275A
• Power Consumption: Less than 6mA
• Dimensions: 2.7" L x 2.7" W x 4" H

Package Includes:

• 701-MDVS Voltage Sensitive Switch
• Installation hardware
• Instruction manual

Designed and engineered for longevity in harsh marine environments, this VSS switch provides reliable battery management for vessels with dual battery systems.
