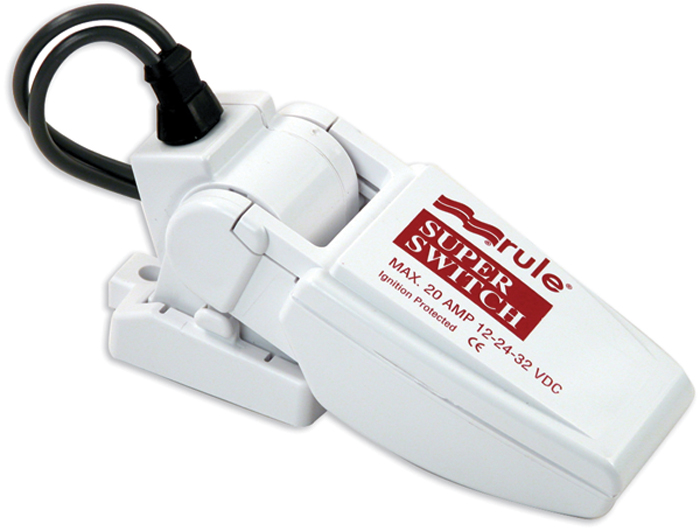

Xylem 37A Rule SuperSwitch Bilge Pump Float Switch 12-24-32V 20 Amp

The Xylem 37A Rule SuperSwitch is a non-mercury automatic bilge float switch designed for the toughest marine applications. This heavy-duty switch features marine-grade 14-gauge blocked wire construction and is capable of handling pumps drawing up to 20 amps. Compatible with 12, 24, or 32 volt DC systems, the SuperSwitch is backed by a 5-year warranty.

Key Features:

• Extra-large float chamber for increased buoyancy and reliable operation
• Removable base design for easy installation, servicing, cleaning and inspection
• Snap switch design prevents rapid on/off cycling
• 28-inch wire length with 14-gauge marine-grade wire
• Mercury-free, environmentally safe design
• Ignition protected for safe marine use

Specifications:

• Maximum Current: 20 amps at 12V DC, 10 amps at 24V DC, 6.5 amps at 32V DC
• Dimensions: 4.1 inches long x 1.6 inches wide x 4.3 inches high (at maximum lift)
• Wire: 14-gauge marine-grade blocked wire, 28 inches long
• Voltage: 12-24-32 VDC

The Rule SuperSwitch 37A provides automatic on/off control for bilge pumps, ensuring reliable water management in marine environments. The removable base design allows you to mount the base securely first, then snap the float switch into place, making installation in tight bilge spaces significantly easier.
