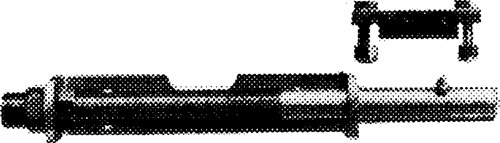

T & R Marine OSM-3792 Same Side Dual Cable Steering Kit for Yamaha Outboards

The T & R Marine OSM-3792 is a same-side dual cable steering connection kit designed for use when both steering cables are installed down the same side of the boat, either port or starboard. This kit mounts directly on the engine's clamp bracket to clear most braces in the engine well, providing a clean installation for dual cable mechanical steering systems.

Key Features:

• Designed for same-side dual cable installation (both cables on port or starboard)
• Steering tube provided with grease fitting and O-ring for smooth operation
• Complete kit with all parts furnished for simple hook-up
• Stainless steel and aluminum construction for superior corrosion resistance
• Mounts on engine clamp bracket to clear engine well braces
• Works with engine manufacturer's steering arm
• Anti-theft feature: steering kit must be removed before removing engine

Compatibility:

• Yamaha 115-220 HP outboards, 1984 and newer
• Johnson/Evinrude 70-235 HP, 1977 and newer (except 225)
• Mercury Black Max 1980 and newer, Mariner 1980 and newer
• All Mercury/Mariner 2.4L engines
• Suzuki 150, 150SS, 200 HP 1986 and newer
• Suzuki 115-140 HP 1987 and newer

Note: Link arm not included. For use with engine manufacturer's steering arm.
