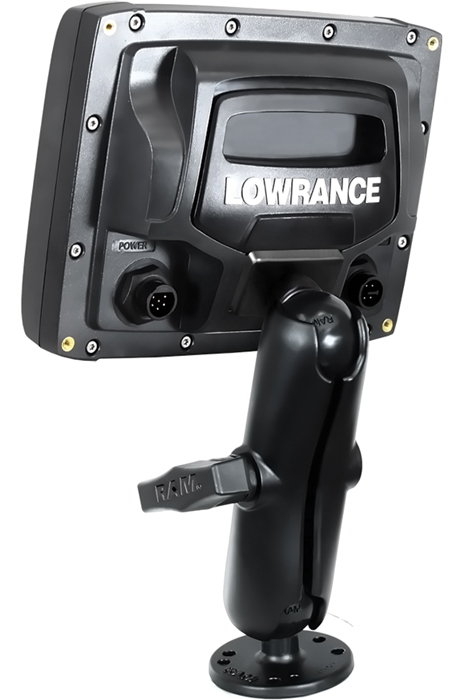

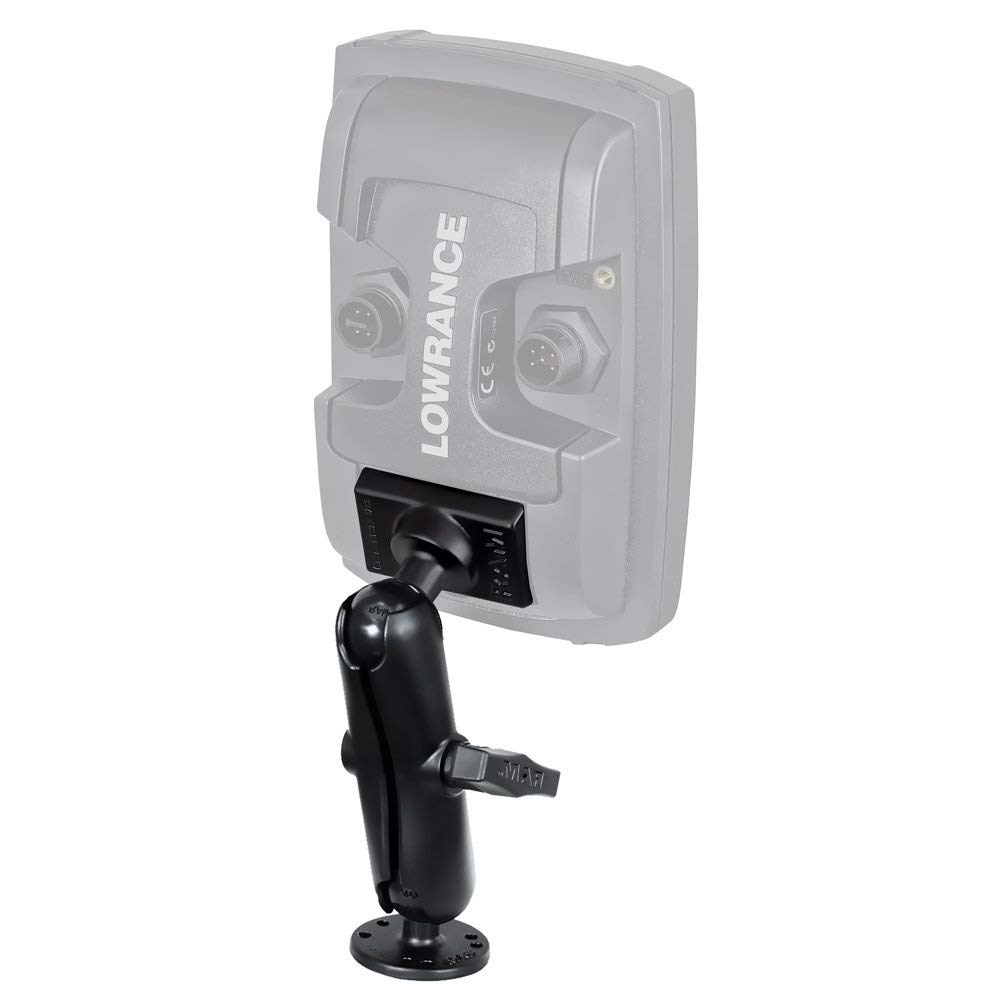

The Ram Mounts RAM-101-LO11 is a heavy-duty, rugged-use marine electronic mounting system designed specifically for compatible Lowrance Elite-5, Elite-5 Ti, Elite-7 Ti/Ti², HOOK-3, HOOK-4, HOOK-5, and MARK-5 fishfinders. Built from powder-coated marine-grade aluminum, this mount is engineered to withstand the demands of saltwater environments, prolonged sun exposure, and rough on-water conditions.

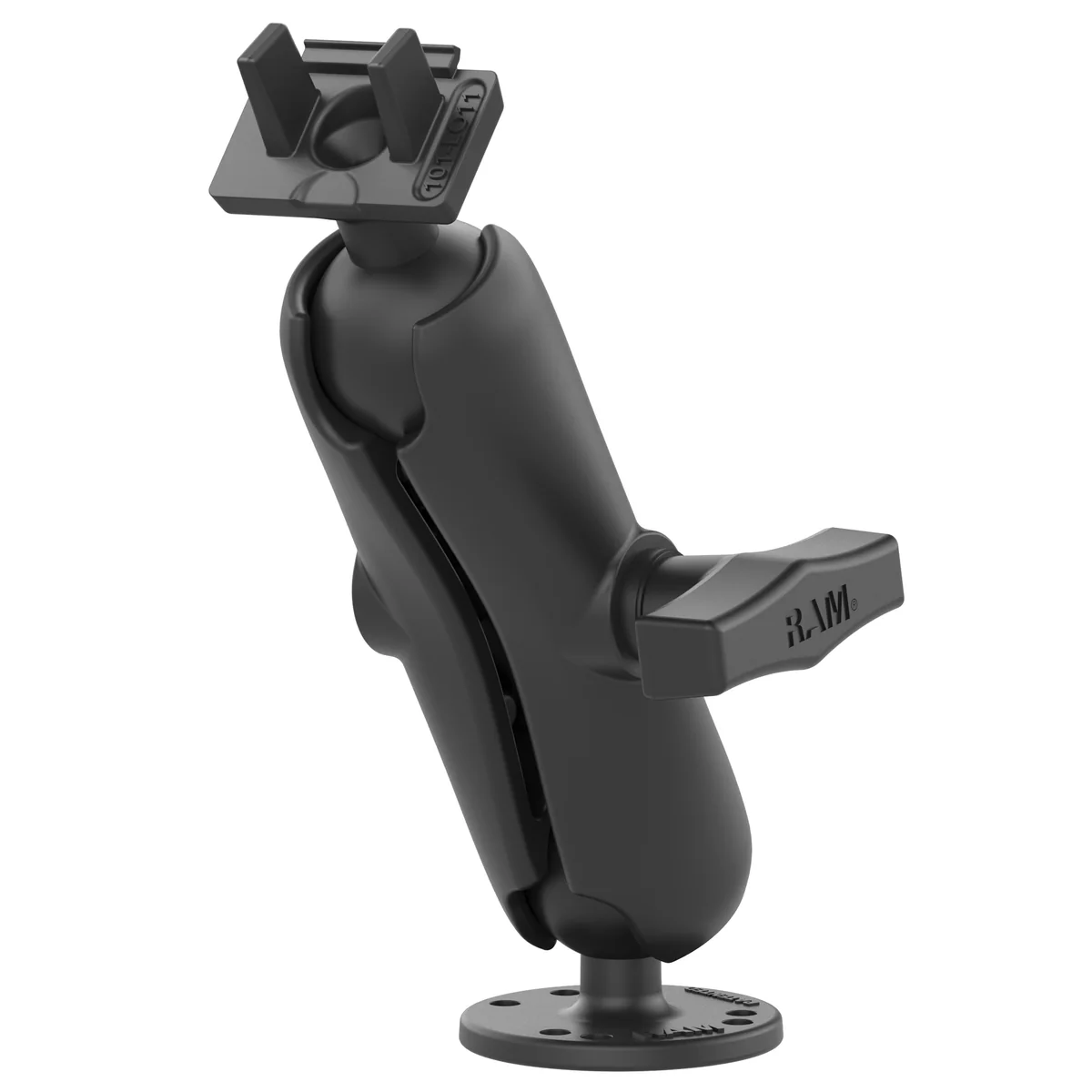

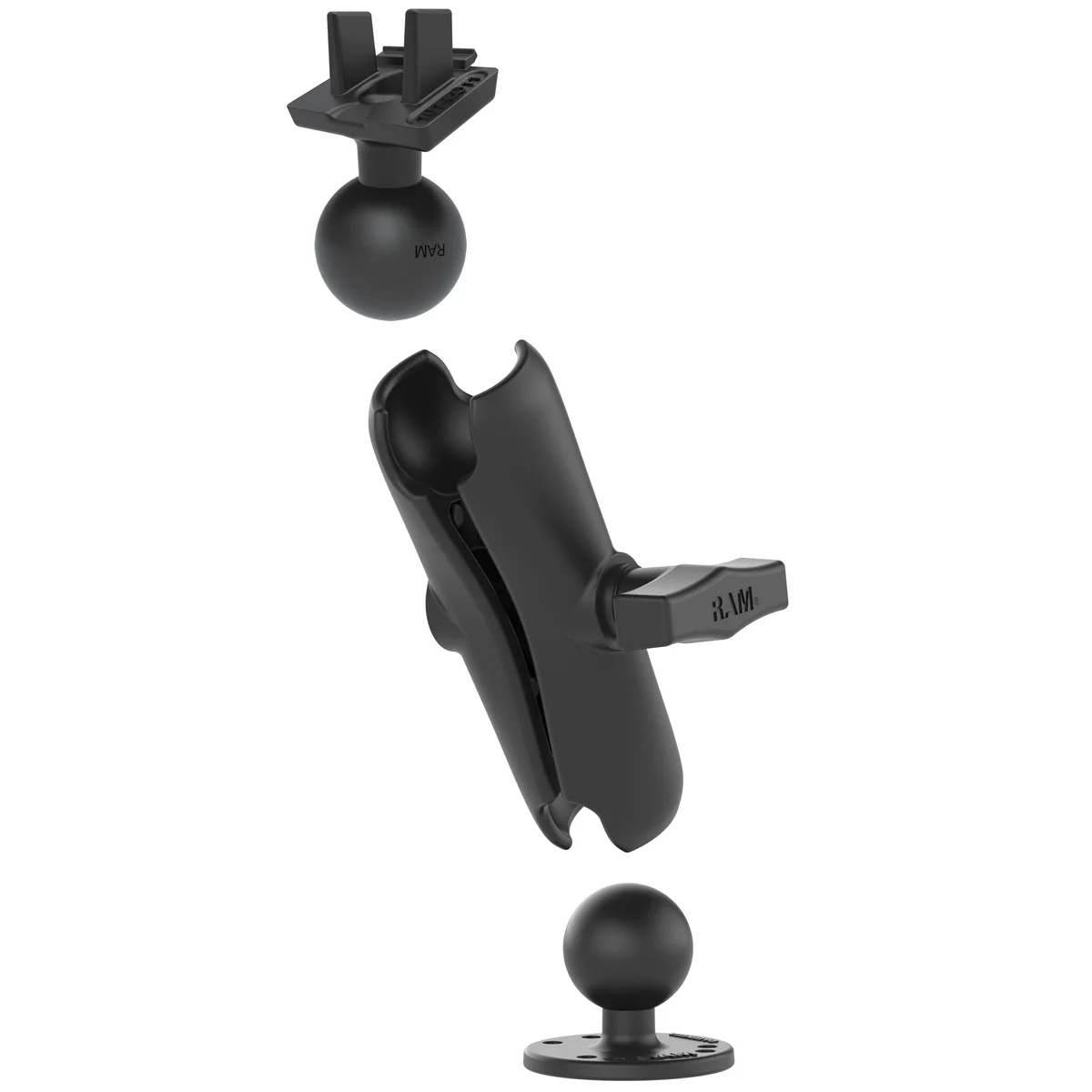

The system includes a 2.5" diameter round base featuring the universal AMPS hole pattern, a 6-inch double socket arm, and a custom adapter base that inserts directly into the back of supported Lowrance fishfinder units. The adapter doubles as a quick-release mechanism, allowing you to remove or transfer your fishfinder in seconds — no tools required.
Key Features:
- C-Size 1.5" patented rubber ball and socket system rated for rugged-use applications
- Adjustment points at both socket ends of the arm for near-infinite positioning
- 2.5" round mounting base with universal AMPS hole pattern for broad compatibility
- Quick-release adapter — remove or transfer your fishfinder in seconds
- Constructed from powder-coated marine-grade aluminum for corrosion resistance
- Overall height: 7.35 inches
- Supports device loads up to 4 lbs
Compatible Lowrance Models:
- Lowrance Elite-5, Elite-5M, Elite-5X
- Lowrance Elite-5 Ti
- Lowrance Elite-7 Ti / Ti²
- Lowrance HOOK-3, HOOK-4, HOOK-5
- Lowrance MARK-5
- Raymarine / Apelco fishfinders with matching hole pattern
Note: This mount is not compatible with the standard (non-Ti) Lowrance Elite-7. RAM recommends this mount for "Rugged Use" applications supporting heavier Lowrance Elite and Mark fishfinder models.
The RAM-101-LO11 is the ideal solution for anglers who need a secure, fully adjustable, and quickly removable fishfinder mount that holds up season after season on the water.
