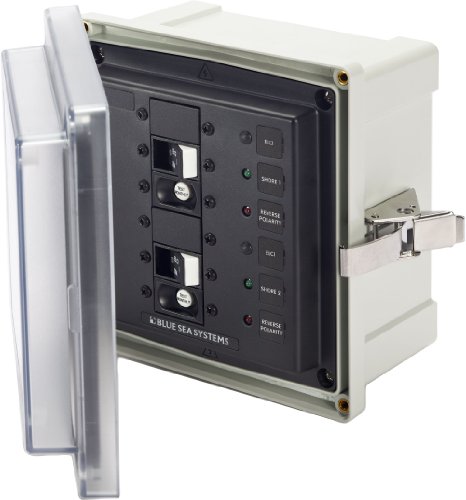

Blue Sea Systems 3117 120V AC ELCI 30A Dual Panel Enclosure

The Blue Sea Systems 3117 is a professional-grade SMS panel enclosure designed specifically for dual Equipment Leakage Circuit Interrupters (ELCI) main circuit breakers. This marine-rated enclosure accommodates two 30-amp ELCI breakers for 120V AC systems and meets ABYC E-11 standards when used with an ELCI main circuit breaker and mounted within 10 feet of the AC shore power inlet.

Key Features:

• Glass-filled polycarbonate base construction for superior durability in marine environments
• Clear cover design allows instant visual verification of circuit breaker status
• Overlapping cover design provides enhanced strength and improved gasket protection
• Oversized, seamless PUR gasket formed in place for reliable weatherproofing
• Removable stainless steel hinge pin enables unobstructed installation access
• Stainless steel latch secures cover without penetrating the enclosure body
• Blank circuit positions compatible with Carling Technologies A and C Series Flat Rocker and ELCI main circuit breakers
• Integrated LED indicators: 2 red LEDs for reverse polarity warning and 2 green LEDs for ON status
• Includes waterproof cable glands for secure wire entry

Technical Specifications:

• Circuit capacity: 2 x ELCI 30A main breakers (120V AC)
• Overall dimensions: 7.6" H x 7.4" W x 4.7" D
• Enclosure dimensions: 6" H x 6" W x 4" D
• Material: Glass-filled polycarbonate with stainless steel hardware

Package Includes:

• 3117 panel enclosure with clear cover
• 6 waterproof cable glands
• Circuit identification labels
• Stainless steel mounting hardware
• Installation manual

Note: Circuit breakers sold separately. This enclosure provides the mounting platform and protection for your ELCI breakers.
