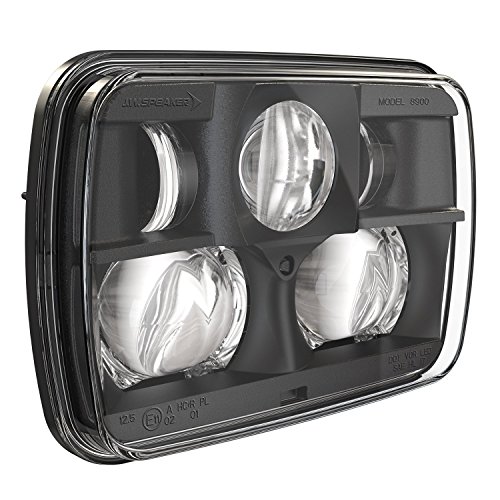

J.W. Speaker 0554491 8900 Evolution 2 LED Headlight 5x7 12-24V DOT/ECE Non-Heated Black

The J.W. Speaker Model 8900 Evolution 2 is a high-performance 5x7-inch LED headlight designed as a drop-in replacement for heavy-duty trucks, mining equipment, logging vehicles, and waste disposal applications. This unit features a 12-24V DC input with DOT/ECE compliance for right-hand traffic applications and comes with a black inner bezel.

Key Features:

• Meets proposed National Highway Transportation Safety Administration (NHTSA) guidelines for 5-Star NCAP-compliant low beam headlight
• Improved LED technology delivering more light output and less glare
• Anti-fog and hard-coated polycarbonate lens formulated to resist UV and chemical damage
• Die-cast aluminum housing with black outer finish for durability
• Integrated DRL (Daylight Running Lights) and FP (Front Position) functions
• H4 connector for simple plug-and-play installation
• Wide operating voltage range: 10-32V DC with transient spike protection up to 150V

Technical Specifications:

• Dimensions: 7.87" W x 5.59" H x 3.74" D
• Operating temperature range: -40°F to 149°F
• Current draw: 1.94A @ 12V (high beam), 1.67A @ 12V (low beam)
• Designed for right-hand drive applications
• Features black inner bezel for a sleek appearance

This non-heated LED headlight assembly provides a safety and performance upgrade for applications in the United States, Canada, European Union, and non-European countries, offering improved light output, glare reduction, and precise light placement. Retrofits standard 2B1 5x7-inch headlight buckets commonly found in commercial and heavy-duty vehicles.
