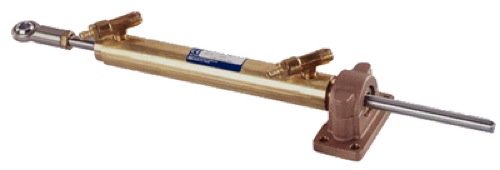

Seastar Solutions HC5357 Capilano BA200-7TMC Inboard Hydraulic Steering Cylinder with Clevis Rod End

The Seastar Solutions HC5357 is a Capilano series inboard marine hydraulic steering cylinder configured as the BA200-7TMC model — featuring a 2.00" bore, 7" stroke, and a rod end clevis (TMC) connection. Engineered for heavy-duty marine applications, this cylinder delivers reliable, precise hydraulic steering performance for large single or dual rudder vessels.

Key Features:

• Brass cylinder barrel for reduced friction and longer seal life compared to stainless steel barrels
• Heavy-duty cast bronze trunnion mount for a rigid, durable installation
• Chrome-plated stainless steel push rod for extended seal life and corrosion resistance
• Rod end clevis (TMC) connection — provides single-axis articulation for solid, direct steering linkage
• Stainless steel and bronze mounting hardware included
• Cylinders supplied with bleeder fittings for easy air purging
• Compatible with single or dual rudder vessels
• Easy autopilot interface
• Copper tubing recommended for optimum system performance

Specifications:

• Model: BA200-7TMC
• Bore Diameter: 2.00" (50.8mm)
• Shaft Diameter: 0.75" (19.0mm)
• Stroke: 7" (178mm)
• Displacement Volume: 18.9 cu. in. (310cc)
• Torque Rating: 13,200 in-lbs
• Rod End Type: Clevis (TMC)
• Barcode: 731957802064

The HC5357 is part of SeaStar Solutions' Capilano 2-Line Heavy Duty hydraulic steering system — a proven platform engineered for performance boats and heavy-duty marine steering demands. Also sold under the Dometic SeaStar brand (Art. No. 9130000930).
