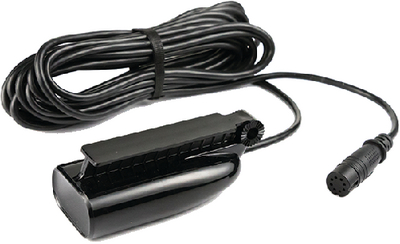

Lowrance 000-14028-001 SplitShot HDI Skimmer Transducer 200kHz CHIRP / 455-800kHz DownScan Transom Mount w/Temp

The Lowrance SplitShot HDI Skimmer Transducer (000-14028-001) delivers a powerful 2-in-1 sonar solution, combining High CHIRP traditional sonar with DownScan Imaging™ in a single transom-mount unit. Designed for anglers who want more detail with less effort, this transducer provides wide-angle sonar coverage to help locate fish and structure faster and more efficiently.

The High CHIRP sonar operates at 200 kHz and produces wide-angle coverage — delivering double the sonar coverage of most conventional fishfinders. DownScan Imaging™ operates at 455/800 kHz and generates highly detailed, picture-like representations of fish, structure, rocks, weeds, and wrecks directly beneath your vessel. The integrated temperature sensor adds water temperature data without requiring an additional transducer.

Key Features:

• SplitShot 2-in-1 Design: Combines High CHIRP and DownScan Imaging™ in one transducer body
• High CHIRP Sonar: 200 kHz, wide-angle beam for broad coverage and superior target separation
• DownScan Imaging™: 455/800 kHz frequencies deliver lifelike views of underwater structure and fish-holding areas
• Built-In Temperature Sensor: Real-time water temperature readings included
• Transom Mount: Easy installation on most boat transoms
• 20-Foot Cable: Ample cable length for flexible routing and installation
• 8-Pin Connector: Compatible with Lowrance Hook² and Hook Reveal HDI display units
• No Speed Sensor Included

Specifications:

• MPN: 000-14028-001
• Sonar Frequencies: 200 kHz (CHIRP High/Wide), 455/800 kHz (DownScan Imaging™)
• Mounting Style: Transom
• Connector Pins: 8
• Cable Length: 20 ft (approx. 6 m)
• Temperature Sensor: Yes
• Speed Sensor: Not included
• UPC: 9420024166291

Compatible with Lowrance Hook² 5 HDI, 5x HDI, 7 HDI, 7x HDI, and 9 HDI display units, the SplitShot HDI Skimmer Transducer is an ideal replacement or upgrade transducer for anglers seeking both traditional sonar and DownScan Imaging™ performance in one compact package.
