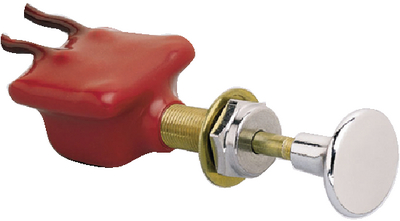

A push-pull switch that is vinyl dipped for added protection in harsh environments
This small On/Off push-pull SPST (single pole, single throw) switch will fit just about anywhere. Because this style of switch has been used by many boat builders, the chrome-plated knob and face-nut look at home on the dash of a variety of boats; simply drill a 3/8" hole and secure the switch using the face-nut. The added protection of its PVC coated body allows installation in locations more susceptible to moisture and condensation. 12" leads, when used with heat shrink butt connectors, provide an excellent seal that will combat corrosion better than conventional spade connectors. The uses for this small switch are practically limitless.
Key Features
- PVC coated switch body
- Out- ON in- OFF control
- 12” 18 gauge terminal leads
- Compatible with surfaces up to 1" thick
- Removable knob
Specifications
- Switch Type: SPST (single pole, single throw)
- Positions: 2
- Amperage: 10A
- Voltage: 12V
- Cable Size: N/A
- Conductors: (2) 18AWG 12" long
- Switch Action: SPST On/Off
- Material: Vinyl coated brass with silver contacts
- Dimensions: 1 3/16"W x 1 3/16"L x 3 1/8" D 3/8" dia. stem
