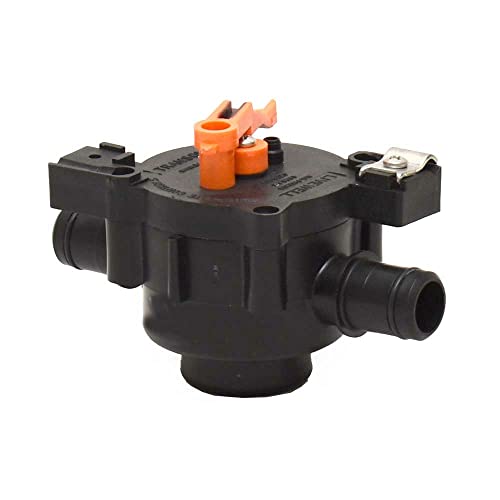

Flow Rite MV-13-FN01 System 3 Livewell Control Valve with 3/4 Inch Qwik-Lok Front Entry

The Flow Rite MV-13-FN01 is a System 3 (V3) three-position automatic livewell control valve designed to provide versatile water management for any boat's livewell, baitwell, or cooler system. This front-entry valve features an orange identification arm and utilizes Flow-Rite's innovative 3/4 inch Qwik-Lok connection system for tool-free installation and removal.

Three Operating Modes:

• Recirc (Recirculation): Transom port is sealed to prevent water from entering or exiting, while the livewell port remains open for recirculation of livewell water on and off plane
• Empty (Drain): Check flapper in front of livewell port allows water to exit through transom drain
• Auto (Automatic Fill): Check flapper in front of transom port allows fresh water to enter when off plane, but will automatically close when boat is on plane or pump is turned off

Key Features:

• 3/4 inch Qwik-Lok quick-disconnect fittings for fast, tool-free connections
• Front cable approach design - control cable enters from the front of the boat
• Orange identification arm for easy visual reference
• Operates with MC-1-03-100 actuator (sold separately)
• Designed for use with standard aerator pumps
• Durable construction for long-lasting marine environments

The closed recirculation mode is ideal for those rare occasions when outside water may not be desirable, such as when refueling at dockside or using livewell additives. The System 3 valve provides complete control over your livewell system while eliminating the need for manual drain plugs and standpipes.

Note: This is the valve assembly only. Control cable and actuator must be purchased separately based on your specific installation requirements.
