Sea-Dog Line 426711-1 Bus Bar Terminal Block 10 Screw Terminals #8-32

The Sea-Dog Line 426711-1 is a marine-grade bus bar screw-terminal block designed for reliable electrical distribution in boat and marine applications. This terminal block features 10 individual #8-32 screw terminals for branch circuit connections, plus two #10-24 studs for main power wire connection, allowing you to distribute power from a single source to multiple circuits.

Key Features:

• 10 screw terminals with #8-32 threading for secure branch connections
• Two #10-24 studs for main wire attachment
• Tin-plated brass construction resists corrosion in marine environments
• Durable ABS insulating base for electrical safety
• Designed specifically for tinned copper marine wire to prevent loosening and electrolytic corrosion

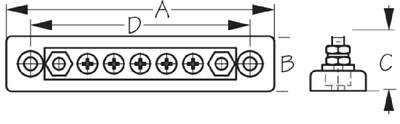

• Compact dimensions: 6-1/4 inches long x 7/8 inches wide
• Maximum rating: 48VDC, 100 amps total capacity
• Mounts with two #10 RH fasteners (sold separately)

Engineered for the harsh marine environment, this terminal block uses materials with matching thermal expansion rates to maintain secure connections over time. The tin-plated brass terminals provide excellent conductivity and corrosion resistance, while the ABS base offers robust insulation and durability. Ideal for organizing DC electrical systems on boats, yachts, and other marine vessels.
