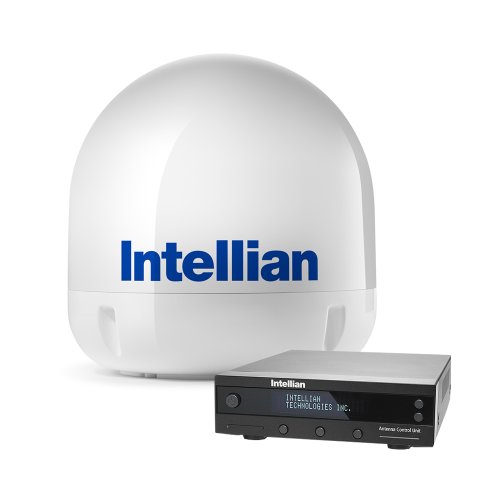

Intellian B4-609AA i6 Satellite TV Antenna System 23.6" Ku-Band Dish All-Americas LNB

The Intellian i6 delivers professional-grade satellite TV reception for vessels 65 feet and larger cruising coastal and offshore waters. Featuring a 23.6-inch (60cm) Ku-Band reflector antenna with extended range capabilities, this fully automated system provides superior tracking performance and signal strength compared to similarly-sized competitive systems.

Advanced Tracking Technology:

The i6 incorporates Intellian's patented Wide Range Search (WRS) and Dynamic Beam Tilting (DBT) technologies for precision tracking even at high speeds or in rough sea conditions. The DBT system uses a high-speed BLDC motor to rotate the sub-reflector, maintaining optimal signal lock during vessel movement. Built-in GPS enhances satellite acquisition speed and accuracy.

Integrated Smart Features:

• Built-in HD module and TriSat function integrated into the antenna control unit
• WiFi-enabled ACU allows one-touch firmware upgrades via the Aptus mobile app
• DVB signal identification with high-speed decoder and QPSK demodulator for DSS
• Automatic satellite search and identification with statistical search algorithms
• Single-cable design between antenna and control unit simplifies installation
• Supports LHCP/RHCP and Horizontal/Vertical polarization

Service Compatibility:

Provides full range of standard definition channels from DirecTV and DISH Network. DISH Network users can add the optional Intellian MIM Switch (M2-TD02, sold separately) for automatic satellite switching and HD channel changing capability similar to home systems. For DirecTV HD programming, upgrade to the Intellian s6HD model.

Complete System Includes:

• 23.6-inch antenna dome with All-Americas LNB
• Antenna Control Unit with WiFi and built-in HD module
• Embedded GPS with NMEA 0183 interface
• Pre-programmed global satellite library
• Downloadable Aptus control app
• Cable kit: 49ft antenna-ACU RG6, 10ft ACU-receiver RG6, 33ft DC power cable, 6ft PC serial cable
• Installation template, quick guide, and operation manual

Warranty: 3-year parts and workmanship guarantee with 2-year labor warranty. Note: This product must ship via truck freight and may not be returned to point of purchase. Contact manufacturer directly with issues or concerns.
