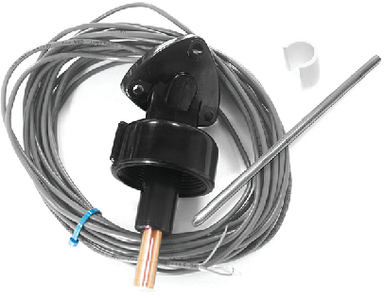

Bennett CC3003P Actuator Upper Hinge with Integrated Position Sensor - Port

The Bennett CC3003P Actuator Upper Hinge with Coil is a replacement upper hinge assembly designed for Bennett hydraulic trim tab systems. This component mounts to the boat transom and features an integrated position sensor with a 30-foot cable that enables trim tab position indication when connected to compatible control panels, NMEA 2000 displays, or AutoTrim Pro systems.

Key Features:

• Designed specifically for marine environments with corrosion-resistant materials
• Integrated position sensor coil for real-time trim tab angle monitoring
• 30-foot sensor cable (models manufactured after March 2019 include gray cable with both port and starboard labels)
• Compatible with both port and starboard installations on current production units
• Includes sensor rod and upper hinge spacer for proper installation
• Connects to concealed through-transom hydraulic fittings for clean appearance

Installation Note: This upper hinge assembly requires removal of hydraulic fittings for replacement. The integrated sensor rod must be properly inserted into the piston during installation. System recalibration is required after replacement to ensure accurate position indication.

Bennett Marine has manufactured hydraulic trim tab systems for over 50 years, and their actuator components are trusted by leading boat builders worldwide for reliability and performance in demanding marine conditions.
