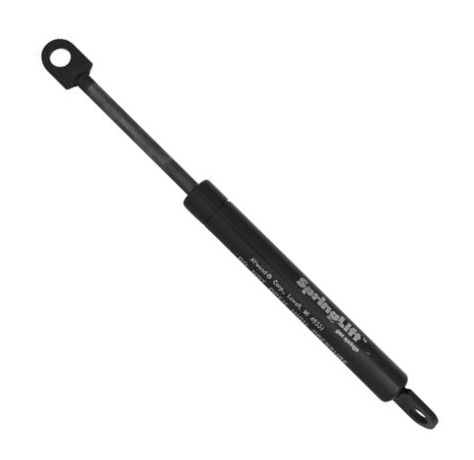

Attwood Marine SL10-10-1 Hatch Lift Gas Spring 10 lb Force 10" Extended

The Attwood Marine SL10-10-1 is part of the Ni-Slide Series gas spring lineup, engineered with bio-degradable, water-grade oil (WGK) for marine, RV, and automotive hatch lift applications. This hatch lift support gas spring features a compressed length of 7 inches and an extended length of 10 inches, providing reliable assisted lifting for access hatches, storage compartments, and boat seats.

Key Specifications:

• 10mm diameter socket end fittings with 10 lbs output force
• 3/8" ball socket type ends with 1/4" rod diameter and 5/8" cylinder diameter

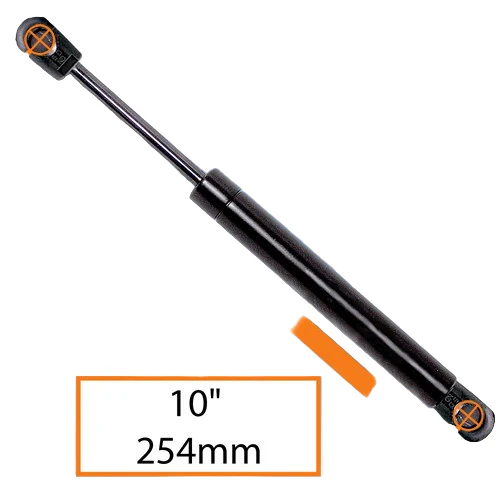

• Extended length: 10 inches
• Compressed length: 7 inches
• 3-inch stroke length
• Black composite finish

Durability and Testing:

• Passes ASTM B117 and Attwood salt spray testing
• Rated for 30,000 cycle lifecycle
• Special Ni-Slide rod coating provides excellent corrosion resistance for salt water applications

The SL10-10-1 is a popular OEM replacement gas spring designed for marine and RV applications where moderate lift assistance is needed. The environmentally-friendly design and proven durability make this an ideal choice for boat hatches, RV storage compartments, and other marine hardware applications.
