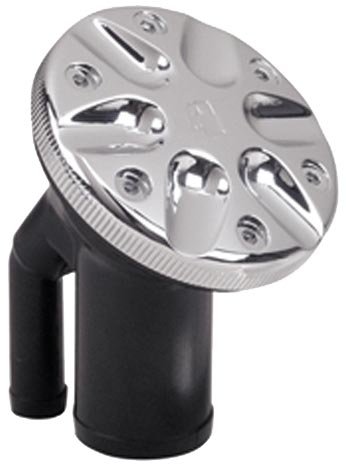

Perko 0590DPGCHR Vented Gas Fill with Angled Neck - Chrome Plated Bronze

The Perko 0590DPGCHR is a premium vented fuel fill fitting designed for marine gasoline applications. This angled neck design features a chrome-plated bronze cap paired with a durable black polymer body, combining corrosion resistance with sleek aesthetics for any vessel.

Key Features:

• Chrome-plated bronze cap with black polymer body for long-lasting marine durability
• Integral tank vent with flame arrestor for enhanced safety
• Stainless steel bead chain keeps cap secure and prevents loss
• Angled neck design for easier installation in tight spaces
• No deck plate key required for convenient access
• Anti-surge valve on diesel versions prevents fuel spillage

Technical Specifications:

• Fill hose size: 1-1/2 inches
• Vent hose size: 5/8 inch
• Mounting hole diameter: 2-1/8 inches
• Flange outer diameter: 3-3/8 inches
• Neck length: 2-7/16 inches
• Screw size: #8

For optimal installation, Perko recommends using the optional mounting ring (Fig. 0540DPRBLK) for all applications. The DP package includes the mounting ring. This fitting meets marine safety standards with its integrated flame arrestor, making it an essential component for safe fuel system installation.
