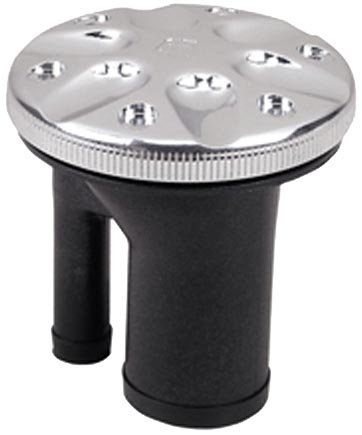

Perko 0591DPGCHR Vented Gas Fill Deck Plate - 1-1/2" Hose Straight Neck Chrome

The Perko 0591DPGCHR is a premium vented gas fill deck plate designed for marine fuel systems requiring 1-1/2" hose connections. This straight neck design features a chrome-plated bronze cap combined with a durable black polymer body for corrosion resistance and long-lasting performance in harsh marine environments.

Key Features:

• Chrome-plated bronze cap with black polymer body construction
• Straight neck configuration with heavy-duty stainless steel bead chain
• Integral tank vent with flame arrestor for safety
• Anti-surge valve (diesel applications)
• No deck plate key required for convenient access
• Accepts 1-1/2" fuel hose and 5/8" vent hose

Technical Specifications:

• Fuel Hose Size: 1-1/2"
• Vent Hose Size: 5/8"
• Mounting Hole Diameter: 2-1/8"
• Flange Outer Diameter: 3-3/8"
• Neck Length: 2-7/16"
• Screw Size: #8

Installation Note: Perko recommends using the optional Mounting Ring (Part No. 0540DPRBLK) for all installations to ensure proper sealing and secure mounting. DP package versions include the mounting ring.

This vented fill plate is ideal for boats, marine vessels, and other applications requiring a reliable, code-compliant fuel filling solution with integrated ventilation and safety features.
