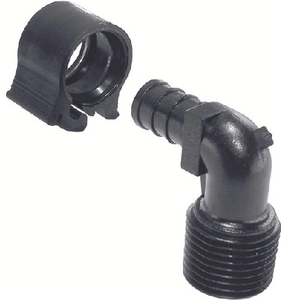

Flair-It Sales 30803 PEXLock Male Elbow 1/2" PEX x 1/2" MPT 90 Degree

The Flair-It Sales 30803 is a 90-degree PEXLock male elbow fitting designed for quick, tool-free installation in PEX plumbing systems. This compression-style fitting connects 1/2" PEX tubing to 1/2" male pipe thread (MPT) connections at a right angle, making it ideal for water distribution in manufactured housing, RVs, marine applications, and residential plumbing.

Key Features:

• 1/2" PEX x 1/2" MPT connection with 90-degree angle
• Rated at 180°F at 100 PSI and 73°F at 200 PSI
• Compression clamp included for secure installation
• Installs in seconds with ordinary slip-joint pliers
• No crimping tools, glue, solder, or special equipment required
• NSF and CSA approved for behind-wall and underground applications
• Freeze-resistant plastic construction
• Can be easily removed and reused with a screwdriver

The PEXLock system features a simple three-step installation: place the clamp on the tubing edge, insert the fitting, and tighten the clamp with pliers. Compatible with PEX and polybutylene tubing, this fitting eliminates the need for expensive tools while providing a reliable, leak-free connection. Note: Use Teflon tape on male pipe threads when connecting to female threads.
