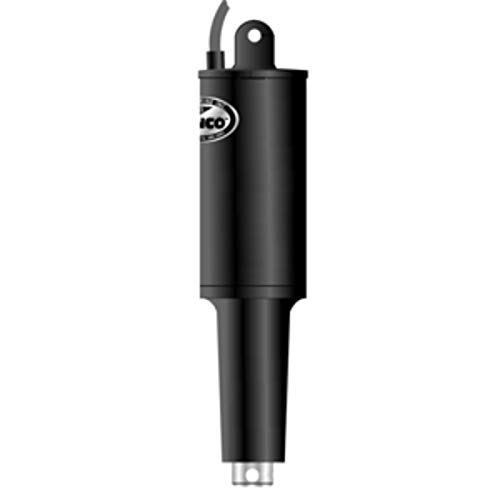

Lenco 15063-001 24V Extreme Duty Trim Tab Actuator 2.25" Stroke

The Lenco 15063-001 is a heavy-duty 24-volt electric actuator designed for demanding marine trim tab applications. Built for use with HD, XD, High Performance, and Super Strong trim tabs, this extreme duty actuator features a 2.25-inch stroke and an overall tip-to-tip length of 11-3/8 inches. Constructed from high-impact, glass fiber-filled, UV-resistant nylon with 316 super buff stainless steel tubing, this actuator delivers instant response and exceptional durability in harsh saltwater environments.

Enhanced Design Features:

• Anti Extrusion Ring (AXR) seal stabilization system for improved reliability
• Reinforced top cap and mounting clevis for increased strength
• Pressure-tight torx screws for secure assembly
• Integrated wiper seal at actuator base to prevent contamination
• Molded-in brass thrust bearing for smooth operation
• Thicker motor housing wall for enhanced durability
• Advanced O-ring design for consistent, long-lasting seal
• Over-molded cable connection for superior water protection
• Upper mounting bracket with gland seal

Performance Advantages:

• Ballscrew design provides superior reliability and twice the power of traditional hydraulic systems
• High-torque motor delivers up to 500 pounds of push force
• Waterproof Deutsch "Plug & Play" connectors eliminate water intrusion concerns
• Includes 3/8-inch mounting hardware for secure installation
• 6-foot cable provides flexible installation options

This extreme duty actuator is engineered for professional-grade performance, offering boaters dependable trim tab control even in the most challenging marine conditions.
