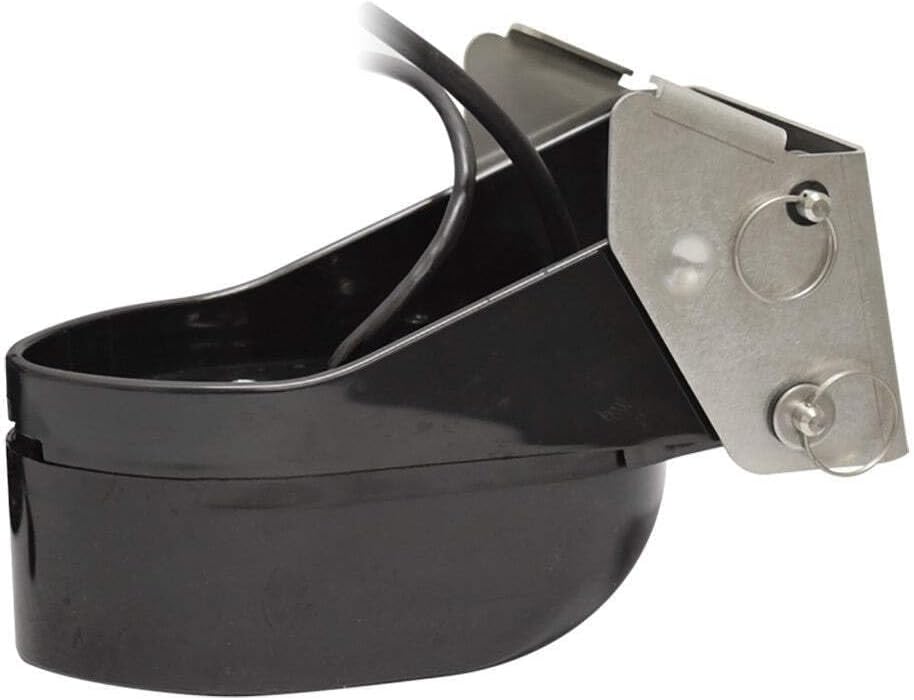

Furuno 165T-50/200-TM260 Transom Mount Combo Transducer for DFF3D

The Furuno 165T-50/200-TM260 is a high-performance transom mount combination transducer designed specifically for use with the DFF3D Multi-Beam Sonar system. This advanced transducer combines traditional CHIRP sonar capabilities with 3D multi-beam scanning technology, providing comprehensive underwater imaging for navigation and fish finding.

Key Features:

• DFF3D operating frequency of 165 kHz for detailed multi-beam 3D sonar scanning
• Dual-frequency 50/200 kHz operation with 1kW power for traditional sounder elements
• 20° and 6° beam angles provide wide coverage and high-resolution target definition
• Performance equivalent to Airmar B164 transducer for sounder functionality
• Built-in motion sensor for accurate pitch, roll, and heading compensation
• Integrated water temperature sensor for environmental data
• 12-meter cable length with 10-pin connector for sounder and 7-pin connector with pigtail for DFF3D
• Transom mount design for easy installation on powerboats

Ideal for TZtouch2 or TZtouch/DFF1 systems paired with the DFF3D multi-beam sonar module, this transducer delivers professional-grade underwater imaging and fish finding capabilities. The combination of traditional CHIRP sonar with forward-looking 3D technology provides complete situational awareness both beneath and ahead of your vessel.
