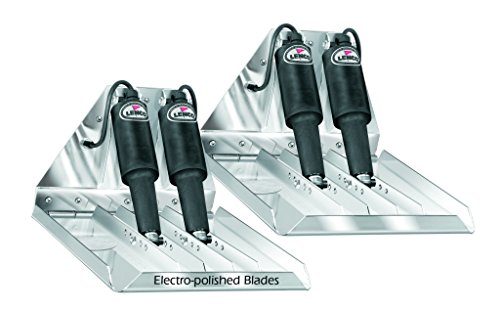

Lenco 15047-101 24" x 14" Extreme Duty Performance Trim Tab Kit Dual Actuator 12V

The Lenco 15047-101 Extreme Duty Performance Trim Tab Kit delivers professional-grade boat control for vessels 25 to 50 feet. This dual actuator system features electro-polished 10-gauge 304 stainless steel blades with fast-response actuators for precise trim adjustment and improved fuel efficiency.

Key Features:

• 24" x 14" electro-polished stainless steel blades with 1" turned-up edges for maximum water deflection
• Four extreme duty 12V actuators with 6" leads and Plug & Play Deutsch connections
• Fully submersible design rated for continuous underwater operation
• 85-degree inside taper and 3/8" diameter stainless steel hinge pin for durability
• Factory-assembled with full transom back plate and mechanical strain relief cable seal
• Adjustable C-channel mounting brackets for versatile installation
• 3.75" sacrificial anodes included for corrosion protection
• CE certified for international compliance

What's Included:

• Two stainless steel trim tab planes (24" x 14" each)
• Four extreme duty actuators with Deutsch plug connectors
• Transom back plate and mounting hardware
• Sacrificial anodes

Technical Specifications:

• Recommended boat length: 25' to 50'
• Minimum transom height: 10.5"
• Blade material: 10-gauge 304 stainless steel
• Voltage: 12V DC
• Finish: Electro-polished

Customer Supplied Items Required:

• Control switch kit (Lenco 15071-001 recommended)
• Actuator extension harnesses - four required for dual actuator configuration (order separately based on your boat's dimensions)
• Boat-specific mounting hardware

This trim tab system improves planing speed, reduces bow rise, corrects listing, and enhances overall fuel efficiency. The extreme duty actuators provide fast response times for immediate adjustment in changing sea conditions.
