Lenco RT16X12HD 16" x 12" Heavy Duty Performance Trim Tab Kit with Tactile Switch 12V

The Lenco RT16X12HD Heavy Duty Performance Trim Tab Kit is engineered for aggressive boating in demanding conditions. This complete 16" x 12" trim tab system features fast-response electric actuators, fully submersible construction, and all stainless steel components designed to withstand the harshest marine environments.

Heavy Duty Construction:

• Electro-polished 12-gauge 304 stainless steel blades with 1" turned-up edges for superior strength
• 85-degree inside taper and 1/4" diameter stainless steel hinge pin
• All stainless steel construction with no dissimilar metals to prevent corrosion
• Extreme duty actuators secured with 5/16" stainless steel bolts
• Full transom backplate with adjustable C-channel mounting brackets for maximum strength
• Solid stainless steel billet rams, chemically polished for unsurpassed durability

Actuator Features:

• Instant response with precise, controllable speed—no surprises at top speeds
• Fully submersible, maintenance-free, and sealed for life
• High-impact, 50% glass fiber-filled, UV-resistant nylon housing
• Mechanical strain relief cable seal for long-term reliability
• Plug-and-play Deutsch connections for easy installation

Standard Solid State Tactile Switch Kit (15069-001/124SSR):

• Built-in retractor feature for automatic trim tab adjustment
• Waterproof, self-contained, sealed solid-state control with Deutsch connectors
• Low-profile design with 2" hole cut-out size, overall 2.75" x 2.75" footprint
• Includes 36" power pigtail and mounting hardware
• Simple plug-and-play installation for 12V single actuator systems

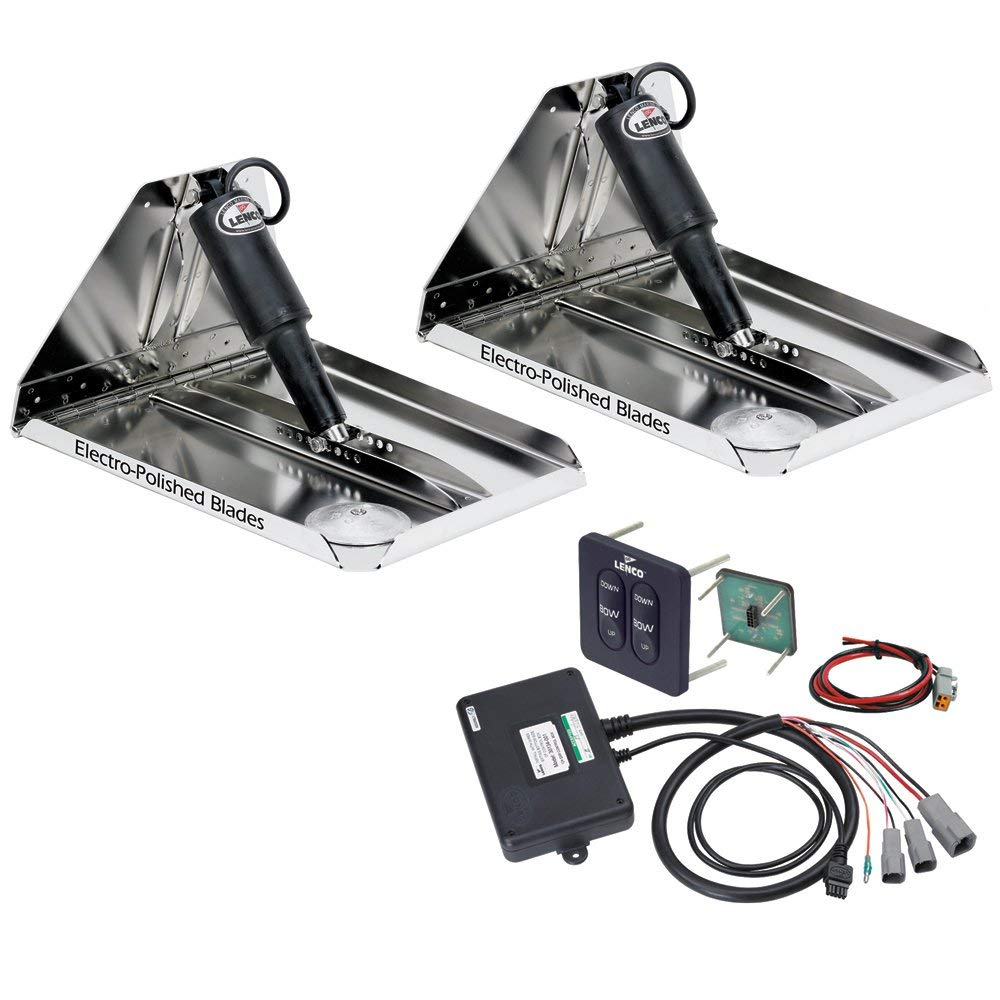

Complete Kit Includes:

• Two actuators with 6' leads and Deutsch plugs
• Two 12-gauge stainless steel electro-polished trim tab planes (16" x 12")
• Two 20' actuator extension wiring harnesses
• Standard tactile switch control kit with retractor
• Full transom backplate and adjustable mounting brackets
• 3.75" sacrificial anodes for galvanic protection

Factory assembled and ready to install. Boat mounting hardware supplied by customer. Designed for high-performance vessels that demand the ultimate in strength, precision, and reliability.

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.
