Lenco RT16X12HDI 16" x 12" Heavy Duty Performance Trim Tab Kit with LED Indicator Switch 12V

The Lenco RT16X12HDI Heavy Duty Performance Trim Tab Kit is engineered for aggressive boating in demanding conditions. This complete system features fast-response electric actuators with precise, controllable speed for confident operation at top speeds. Built with all stainless steel construction and no dissimilar metals, this system delivers unmatched durability and corrosion resistance.

Heavy Duty Construction:

• Electro-polished 12-gauge 304 stainless steel blades with 1" turned-up edges
• 85-degree inside taper design for optimal water flow
• 1/4" diameter stainless steel hinge pin
• Massive full transom backplate with adjustable C-channel mounting brackets
• Extreme duty actuators secured with 5/16" stainless steel bolts
• Solid stainless steel billet rams, chemically polished for maximum durability
• Mechanical strain relief cable seals
• 3.75" sacrificial anodes included

Actuator Features:

• Instant response with fully submersible, maintenance-free, sealed-for-life design
• High-impact, 50% glass fiber-filled, UV-resistant nylon housing
• Factory assembled with Plug & Play Deutsch connections
• Comes with 6' leads and 20' extension wiring harnesses

Tactile LED Indicator Switch:

• Self-contained, sealed keypad with separate control box module
• 2 high-intensity LED indicator displays show exact trim tab position at all times
• Photo eye sensor automatically adjusts LED brightness for optimal viewing in direct sunlight
• Built-in auto-retract feature returns tabs to fully retracted position when power is removed
• Fade-proof, smudge-proof laser-engraved graphics
• 2" hole cut-out size, 2.75" x 2.75" overall dimensions
• Includes 36" power pigtail and Plug & Play wiring harness
• Self-check diagnostic feature
• 12V and 24V compatible

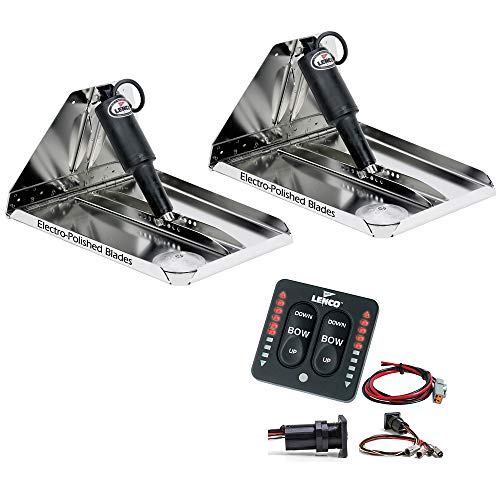

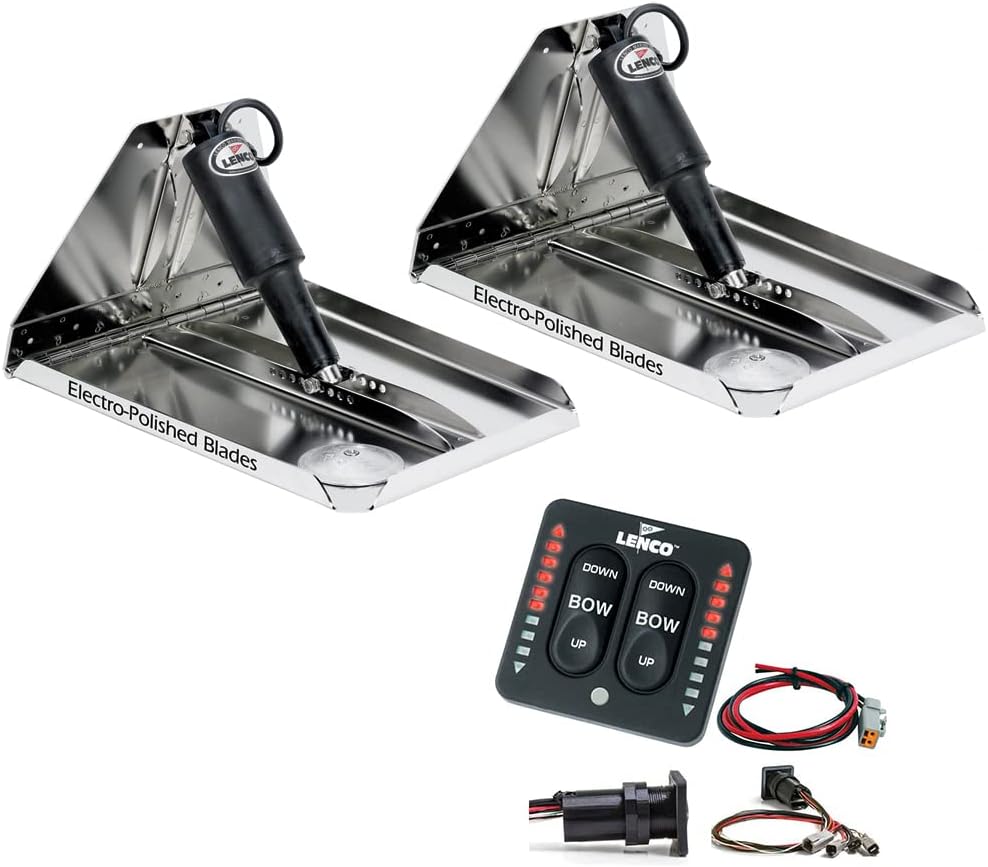

Complete Kit Includes:

• Tactile LED indicator switch with control module
• 2 heavy duty actuators with 6' leads and Deutsch connectors
• 2 electro-polished 16" x 12" stainless steel trim tab planes
• 2 20' actuator extension wiring harnesses
• Full transom mounting hardware (customer supplies boat-specific fasteners)

This professional-grade trim tab system provides the strength, precision, and reliability demanded by high-performance boaters who run hard in challenging conditions.
