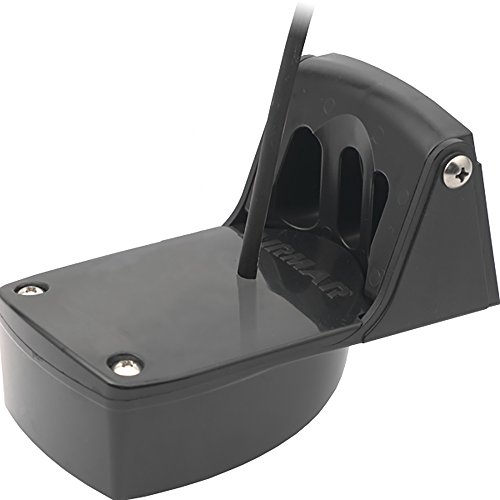

Furuno TM150M Medium-Frequency CHIRP Transducer with Temperature Sensor

The Furuno TM150M is a medium-frequency CHIRP transducer designed for offshore and freshwater anglers seeking superior target resolution and fish detection in shallow to medium depths. Operating at 95-155 kHz, this Airmar-manufactured transducer delivers 60 kHz of total bandwidth from a single unit, providing exceptional clarity and fish-finding performance up to 2,500 feet.

Key Features:

• Medium CHIRP frequency range of 95-155 kHz for optimal performance in shallow, murky waters
• Built-in water temperature sensor for comprehensive fishing data
• Wide beamwidth coverage (26° to 17°) delivers wider fish arches and better visualization
• Enhanced bottom tracking capability at higher boat speeds
• Ideal for inshore, coastal, and freshwater fishing applications
• Reveals fish holding close to structures and suspended targets with ultra-clear resolution
• Airmar Xducer ID® technology for automatic transducer recognition
• Plastic transom mount design with included bracket and hardware

Technical Specifications:

• Frequency Range: 95-155 kHz (60 kHz bandwidth)
• Maximum Depth: 2,500 feet
• Beamwidth: 26° to 17°
• Hull Deadrise Compatibility: 2° to 20°
• Acoustic Window: Urethane
• Internal Ceramic Elements: 1
• Connector: 10-pin
• Compatible Hull Types: Fiberglass, wood, or metal
• Weight: 1.1 lbs

The TM150M transom mount configuration provides easy installation without hull penetration, making it an excellent choice for anglers who want professional-grade CHIRP sonar performance with straightforward setup. The included custom transom housing and cover protect the transducer while maintaining optimal acoustic performance.
