Lippert Components 298274 Lippert Electric Trailer Brake Assembly - 10" x 2-1/4" Brake Size, 4-Bolt, 3,500-lb. Axles, Right (Passenger) Side #298274

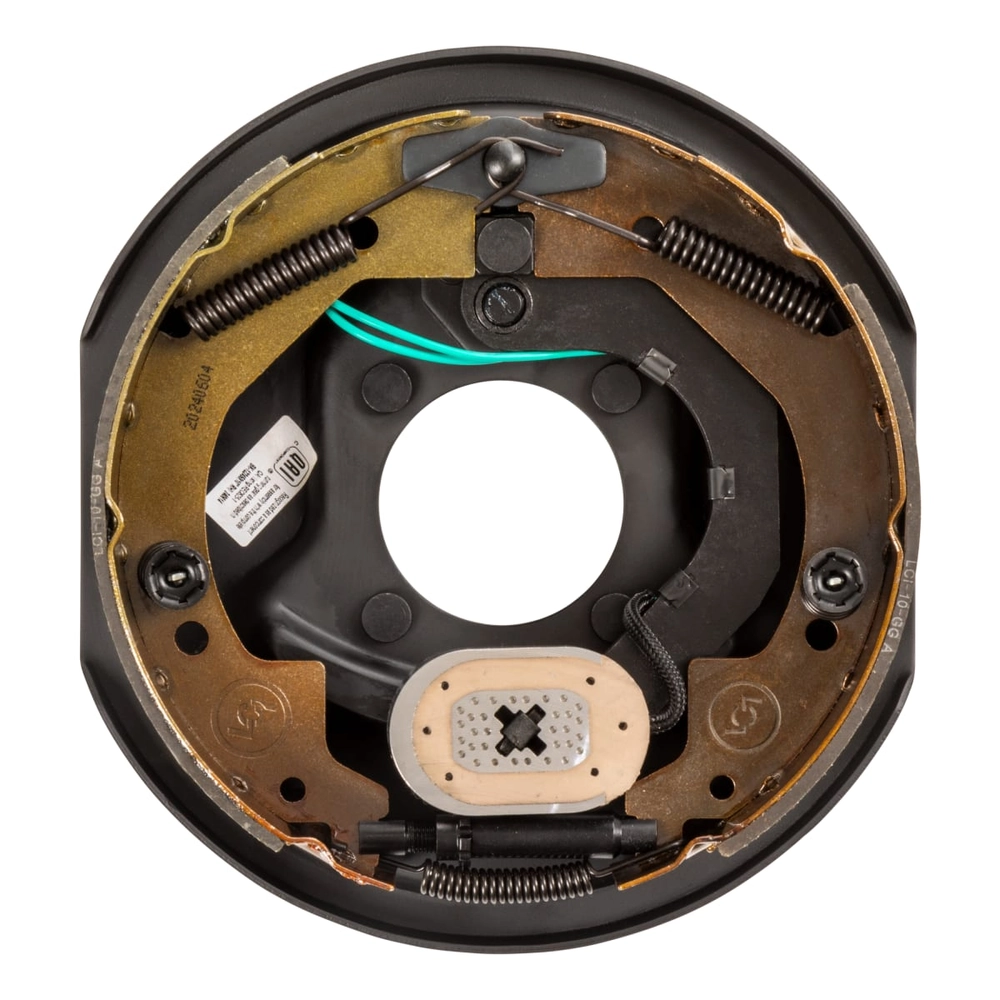

The Lippert Components 298274 is a complete replacement electric drum brake assembly designed for trailer axles rated at 3,500 lbs. Sized at 10" diameter x 2-1/4" width and mounted on the right (passenger/curb) side, this assembly delivers reliable stopping power for travel trailers, RVs, and utility trailers. It uses an electric actuation system, requiring only a brake controller — no hydraulic lines or actuator needed.

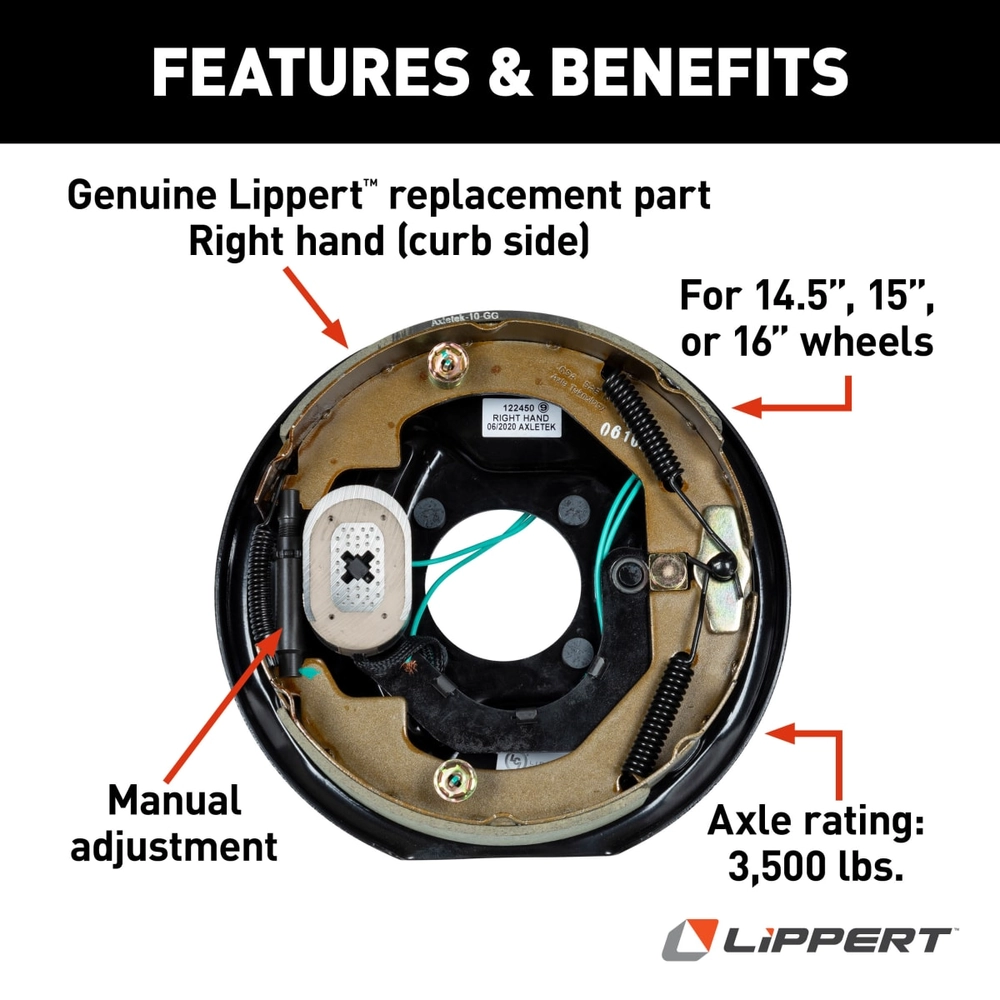

Key Features:

• Brake Size: 10" x 2.25" (10" diameter x 2-1/4" width)
• Axle Capacity: 3,500 lbs.
• Side: Right (Passenger/Curb Side)
• Flange Pattern: 4-Bolt hub mounting
• Mounting Bolt Size: 7/16"
• Brake Type: Electric drum brake with manual adjustment
• Automotive-grade friction material on brake shoes for superior stopping performance and durability

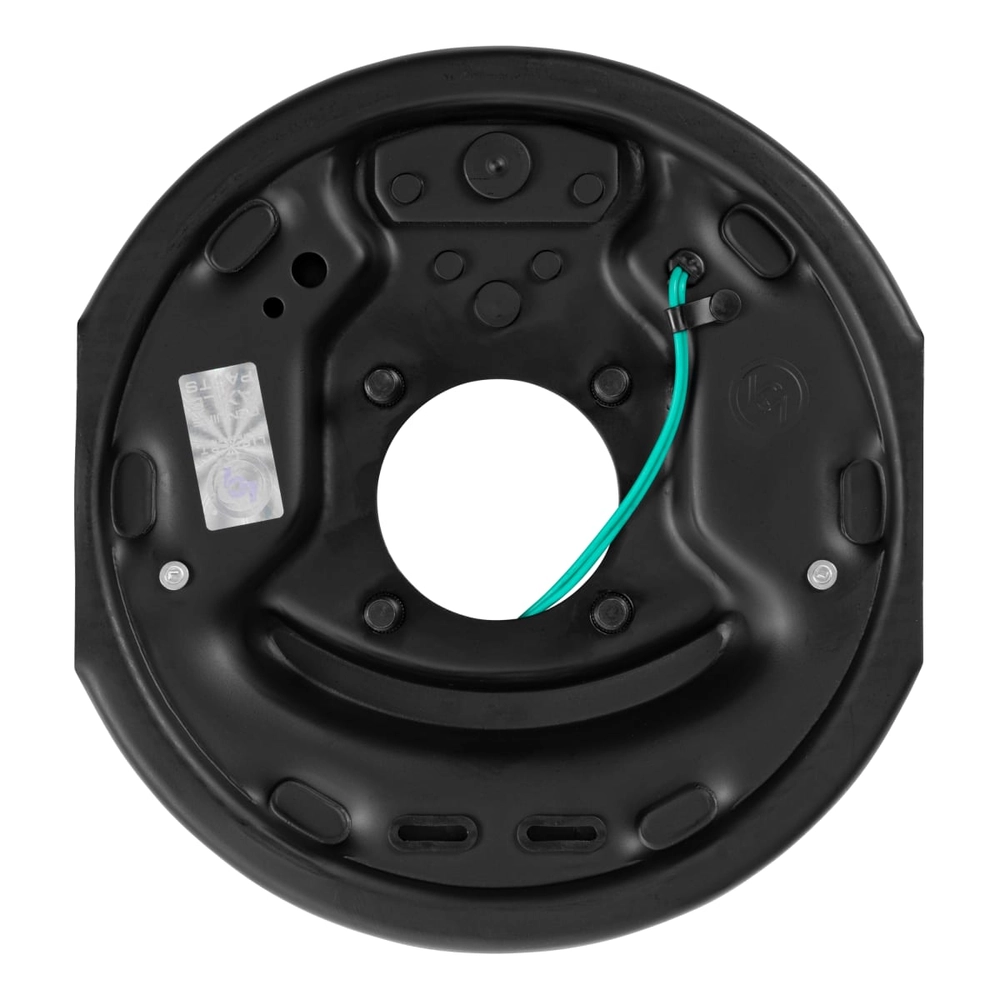

• E-coat finish on backing plate resists rust and corrosion
• Adjuster plugs protect internal components from dirt, grime, and road debris
• Compatible with all standard and aftermarket electric brake controllers
• Certified to QAI and CSA quality standards

What's Included:

• Backing plate
• Shoe and lining kit
• Magnet kit
• Adjusting screw
• Spring hardware kit

Cross-Reference Part Numbers: Supersedes Lippert SKU 122450 | Dexter Compatible: K23-027-00

New electric drum brakes require a short break-in period to reach full braking performance. Lippert recommends inspecting and adjusting brakes after the first 200 miles of use and every 3,000 miles thereafter. Covered by a 1-year warranty.
