Blue Sea Systems 6008 M-Series Battery Switch 3-Position Mini Selector Red

The Blue Sea Systems 6008 M-Series Battery Switch is a compact 3-position selector switch designed to connect a single battery to a single load group. This mini battery switch features a red knob and provides reliable on/off switching for marine electrical systems.

Key Features:

• Ignition protected for safe installation aboard gasoline-powered boats
• Compact mini design ideal for space-constrained installations

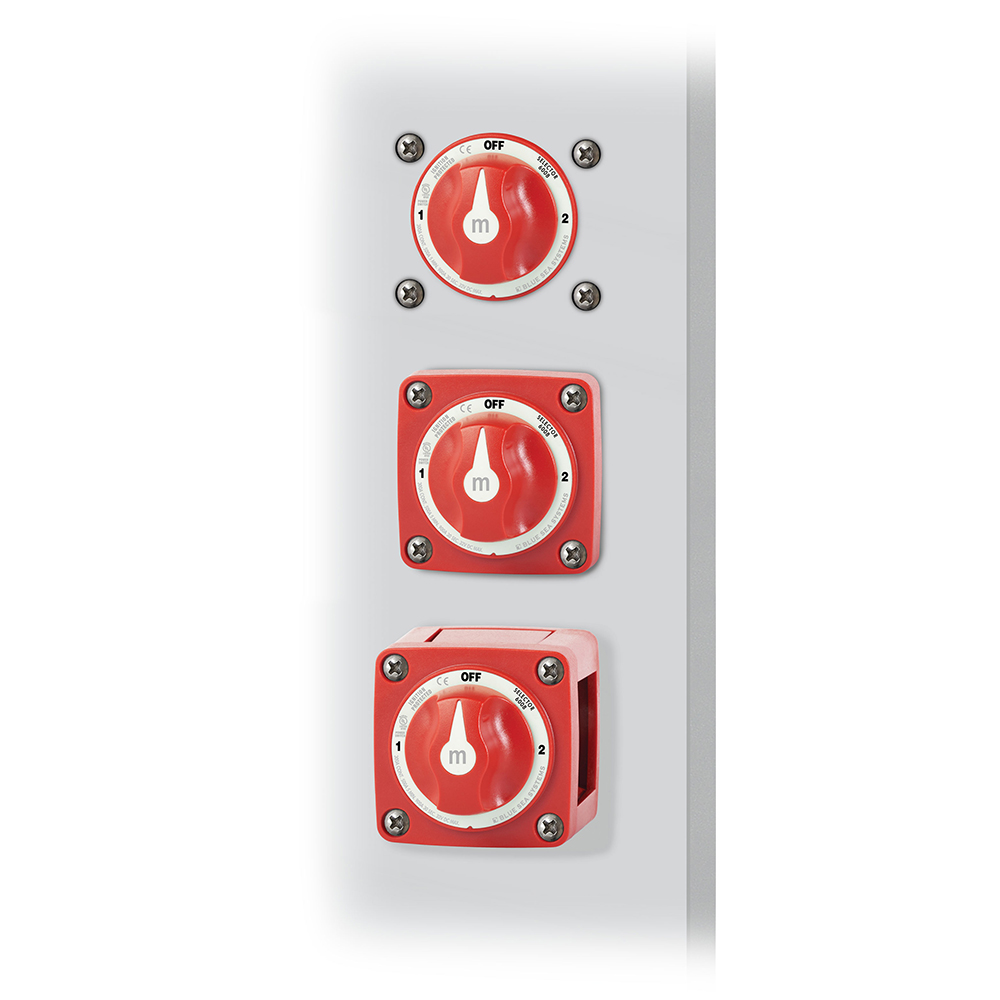

• Versatile mounting options—surface or rear panel mount capability
• Durable construction built to marine standards
• Easy-to-grip red rotary knob for positive switching

Technical Specifications:

• Switch Type: 3-position selector switch
• Maximum Voltage: 32V DC
• Continuous Duty Rating: 100 Amps
• Intermittent Rating: 250 Amps (5 minutes), 360 Amps (90 seconds)
• Knob Color: Red
• Battery Combine Function: No
• Ignition Protection: Yes

This battery switch is ideal for managing electrical power distribution in boats, RVs, and other marine or mobile applications where reliable battery switching is required. The 3-position design allows you to select between two batteries or turn the system off completely.
