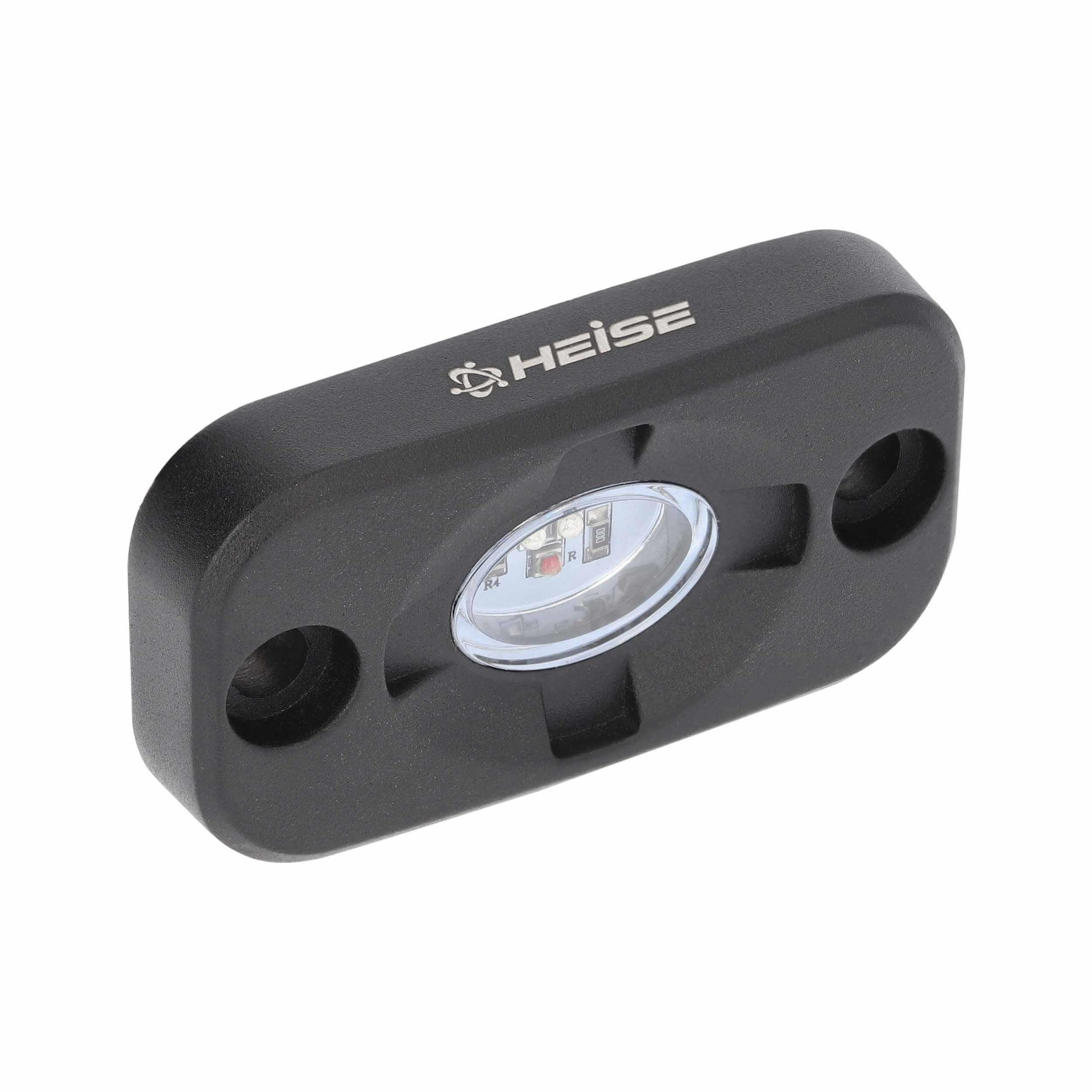

HEISE LED Lighting Systems HE-TL1 1.5" x 3" Auxiliary Accent Lighting Pod White

The HEISE HE-TL1 is a compact 1.5" x 3" auxiliary accent lighting pod designed for off-road, marine, powersports, and general utility applications. Featuring CREE LEDs and a wide 120° flood beam pattern, this pod delivers powerful, even illumination across a broad area. Built with a rugged die-cast aluminum housing and an IP68 waterproof rating, the HE-TL1 is engineered to perform reliably in demanding environments.

Electrical Specifications:

• Input Voltage: 10–30V DC
• Wattage: 15W
• LED Type: 3–5W CREE LEDs (White)
• Raw Lumens: 1,200 / 720
• Current Consumption: 0.2A @ 13.8V
• Beam Pattern: 120° Flood

Construction:

• Housing Material: Black die-cast aluminum
• Lens Material: Polycarbonate (PC)

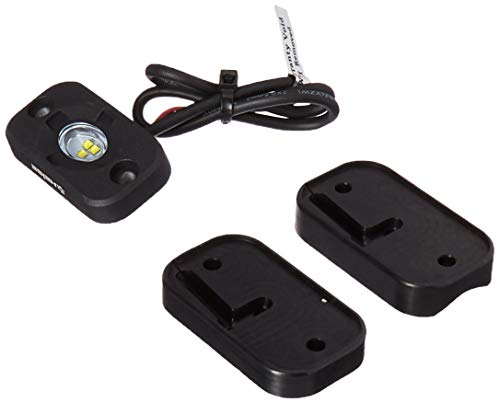

• Mounting: Two rubber bases included
• Hardware: Black mounting screws included

Operating Conditions:

• Operating Temperature: –40°C to +60°C
• IP Rating: IP68 (fully waterproof)

The HE-TL1's broad voltage compatibility (10–30V DC) makes it suitable for both 12V and 24V electrical systems, and the included rubber mounting bases allow for flexible installation on a variety of surfaces. Whether used as accent lighting, work lighting, or supplemental trail illumination, this pod offers a durable and versatile solution in an ultra-compact form factor.
