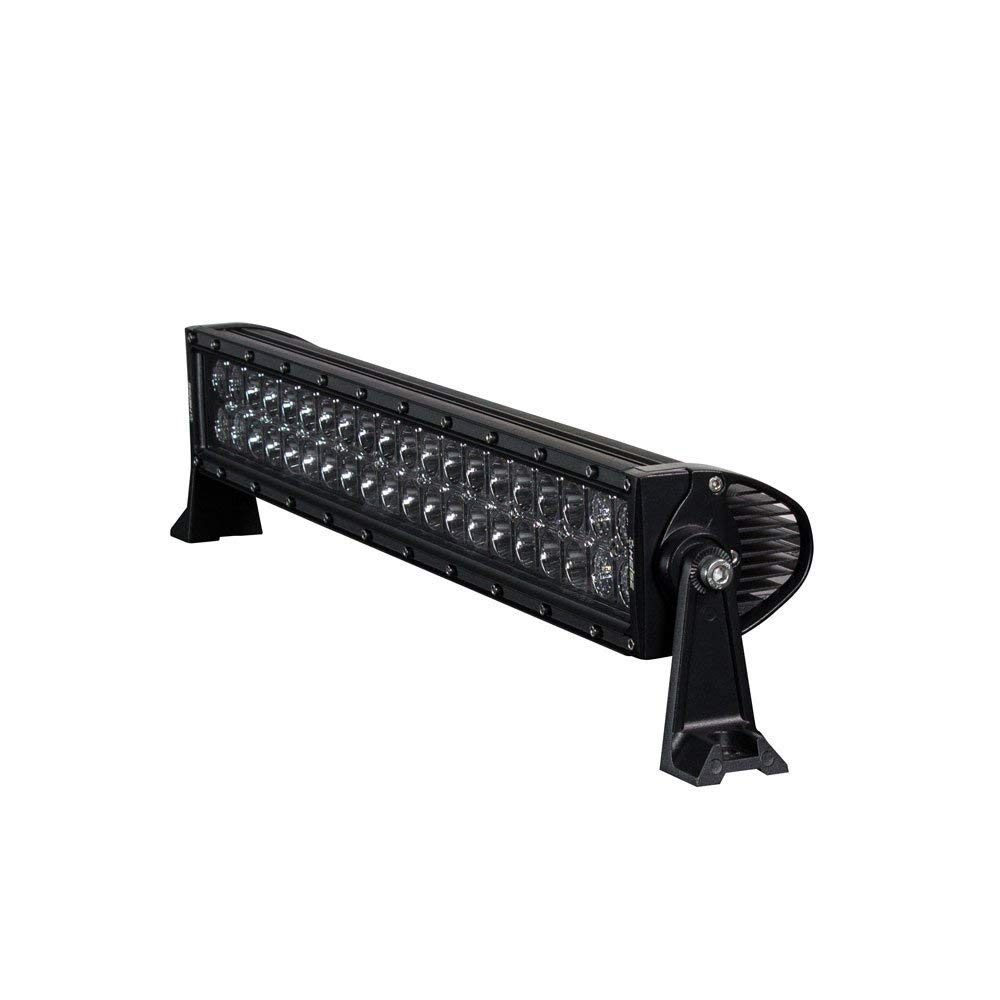

HEISE HE-DR22 22-Inch Dual Row LED Light Bar - Black, 120W, 9600 Lumens, Combo Beam

The HEISE HE-DR22 is a 22-inch dual row LED light bar engineered for high-output off-road and marine lighting applications. Powered by 40 Cree XB-D Series 3W LEDs, this bar delivers 9,600 raw lumens at 120 watts with a crisp 6000K color temperature for a clean, daylight-white output. The combo beam pattern combines a wide 90° flood with an intense 8° spot, placing focused spotlights at the center flanked by wide-angle driving light coverage on each side.

Built for durability in demanding environments, the HE-DR22 features a die-cast aluminum housing and mounting brackets finished in black, with a polycarbonate lens and fully epoxy-encapsulated electronics. Stainless 316 hardware ensures long-term corrosion resistance, while an IP67 waterproof rating and an operating range of -40°C to +60°C make it suitable for both off-road and marine use. Integrated reverse polarity protection adds an extra layer of electrical safety.

Electrical Specifications:

• Input Voltage: 10–30V DC
• Power Consumption: 120W (40 × 3W Cree LEDs)
• Current Consumption: 6.3A @ 13.8V
• Raw Lumens: 9,600
• LUX @ 10M: 655
• Color Temperature: 6000K
• Beam Pattern: Combo — Flood (90°) / Spot (8°)

Construction Details:

• Housing Material: Die-cast aluminum, black finish
• Lens Material: Polycarbonate (PC)
• Mounting Brackets: Die-cast aluminum (adjustable inward/outward)
• Bar Length (without brackets): 22.12"
• Height: 3.00" | Depth: 3.50"
• Bracket Hole Spacing (inward): 21.50" | (outward): 23.75"
• Mounting Bolt Drill Size: 0.25"
• Electronics: Integrated, epoxy-encapsulated
• Hardware: Stainless 316

Operating Specifications:

• Operating Temperature: -40°C to +60°C
• IP Rating: IP67 (dust-tight and waterproof)
• Protections: Reverse polarity

Heavy-duty rubber foot mounts are included to help minimize vibration during operation. The HE-DR22 accepts a wide 10–30V DC input range, making it compatible with both 12V and 24V electrical systems.
