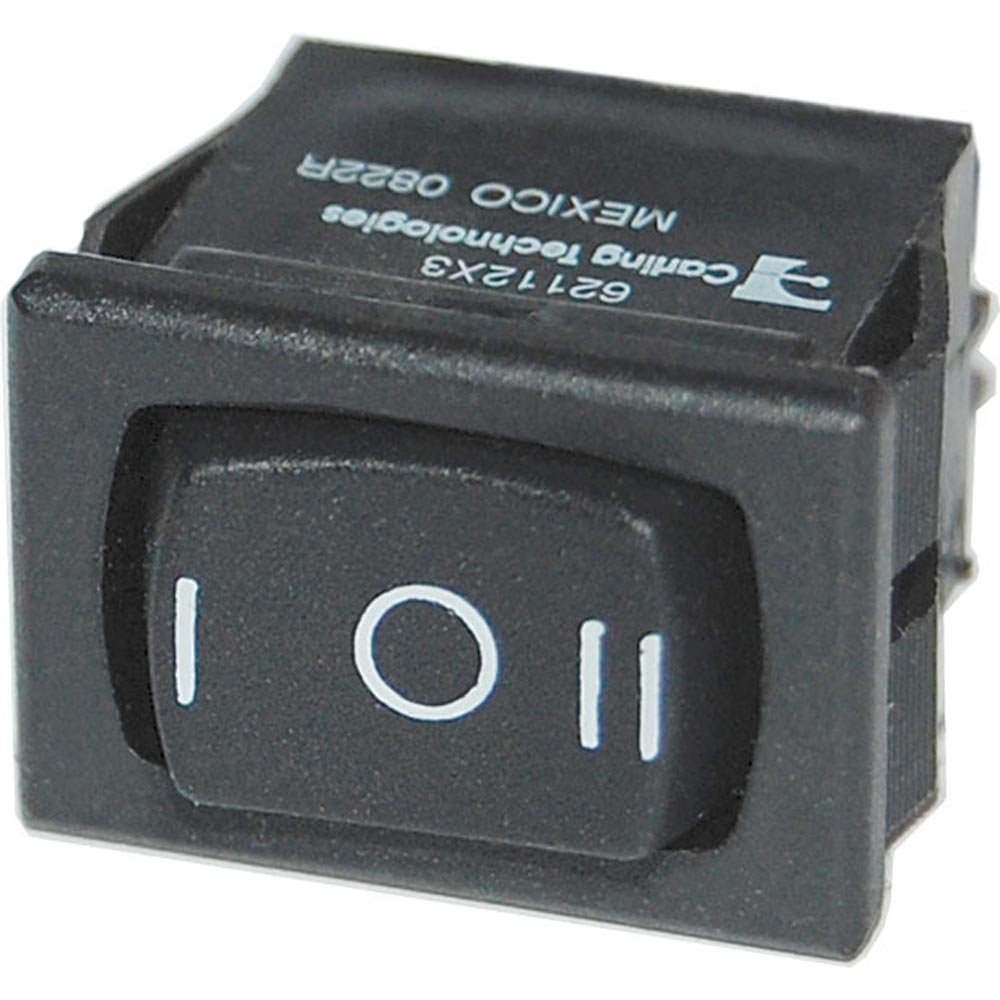

The Blue Sea Systems 7482 is a high-quality SPDT (Single Pole/Double Throw) rocker switch designed specifically for use in Blue Sea's innovative 360 Panel System. This switch features ON-OFF-ON functionality, allowing you to control a circuit between two different positions with a central off position.
360 Panel System Integration:
The 360 Panel System utilizes an open frame design to mount a wide selection of interchangeable modules, enabling multiple functions to be combined in a single, customizable panel. This modular approach offers exceptional design flexibility and can accommodate future changes with rapid assembly. The 7482 switch is compatible with Gauge modules, DC Push Button + Switch modules, and DC Battery Management modules within the 360 Panel System.
Technical Specifications:
- Switch Action: ON-OFF-ON (three-position)
- Configuration: SPDT (Single Pole/Double Throw)
- Current Rating: 10A @ 12V DC / 8A @ 24V DC / 8A @ 125V AC / 8A @ 250V AC
- Terminal Type: Quick Connect Tab
- Terminal Size: 0.187" (4.75mm)
- Weight: 0.08 lbs (0.04 kg)
Applications:
Ideal for marine electrical systems requiring source selection, battery management, or dual-circuit control. The SPDT configuration allows you to switch a single input between two different outputs, making it perfect for battery bank switching, backup system selection, or dual accessory control.
Note: Maximum amperage ratings depend on the use of appropriately sized fuses and wire for your specific application. Always follow proper marine electrical installation practices and applicable safety standards.
