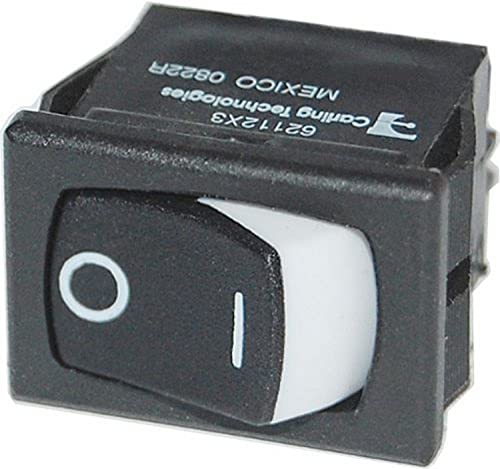

Blue Sea Systems 7480 360 Panel Rocker Switch SPST OFF-ON

The Blue Sea Systems 7480 is a single pole, single throw (SPST) rocker switch designed specifically for use with the innovative 360 Panel System. This versatile switch features a simple ON-OFF action and integrates seamlessly into modular 360 Panel configurations.

Key Features:

• SPST (Single Pole/Single Throw) configuration with ON-OFF action
• Compatible with 360 Panel Gauge, DC Push Button + Switch, and DC Battery Management modules
• 10A maximum amperage rating at 12V DC, 24V DC, 125V AC, and 250V AC
• Quick connect tab terminals with 0.187" (4.75mm) terminal size
• Compact and lightweight design at just 0.08 lbs
• Part of the modular 360 Panel System for flexible panel design and future expandability

The 360 Panel System uses an open frame architecture that allows multiple functions to be combined in a single panel installation. This rocker switch module offers convenient control for DC circuits in marine, RV, and other mobile applications where reliable switching and modular flexibility are essential.

Specifications:

• Action: ON-OFF
• Pole/Throw: SPST
• Maximum Amperage: 10A @ 125V AC / 10A @ 12V DC / 10A @ 24V DC / 10A @ 250V AC
• Terminal Type: Quick Connect Tab
• Terminal Size: 0.187" (4.75mm)
• Weight: 0.08 lb (0.04 kg)

Note: Maximum amperage ratings are dependent on use of appropriately sized fuses and wire for a given application.
