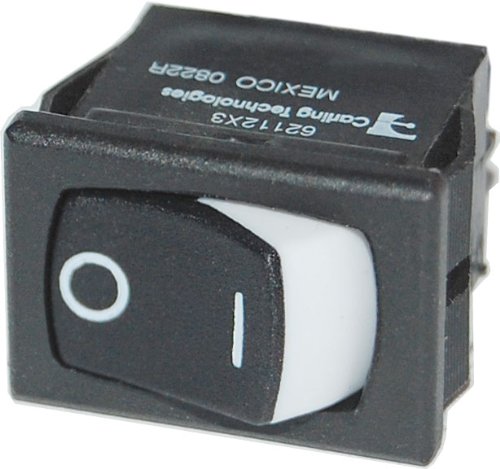

Blue Sea Systems 7481 360 Panel Rocker Switch SPST OFF-(ON) Momentary

The Blue Sea Systems 7481 is a single pole, single throw (SPST) rocker switch designed specifically for use with the innovative 360 Panel System. This momentary switch features an OFF-(ON) action, meaning it returns to the off position when released, making it ideal for temporary activation applications in marine electrical systems.

360 Panel System Integration:

The 360 Panel System utilizes an open frame design that allows you to mount a wide selection of interchangeable modules, combining multiple functions in a single, customizable panel. This rocker switch integrates seamlessly with Gauge modules, DC Push Button + Switch modules, and DC Battery Management modules, offering unmatched design flexibility for your vessel's electrical configuration.

Key Specifications:

• Switch Type: SPST (Single Pole/Single Throw)
• Action: OFF-(ON) momentary - spring returns to OFF position
• Maximum Amperage: 12A @ 125V AC, 10A @ 12V DC, 10A @ 24V DC, 6A @ 250V AC
• Terminal Type: Quick connect tab
• Terminal Size: 0.187 inches (4.75mm)
• Weight: 0.08 lbs (0.04 kg)

Important Notes:

Maximum amperage ratings require appropriately sized fuses and wire for your specific application. The momentary action indicated by parentheses (ON) means the switch activates only while held and automatically returns to the OFF position when released.

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
