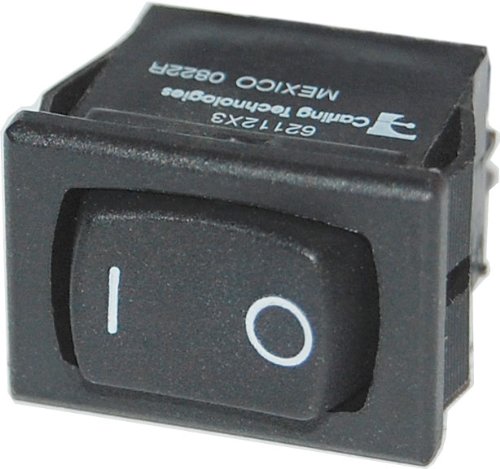

360 Panel - 7485 Rocker Switch SPDT - (ON)-OFF-(ON)

The 360 Panel System uses an open frame to mount a broad selection of modules, allowing multiple functions to be combined in a single panel.

This innovative design offers a wide choice of panel features, can accommodate future changes and permits rapid assembly. With options ranging from battery management to source selection, the 360 Panel System provides unmatched design flexibility.

For use in 360 panels in the following modules: Gauge, DC Push Button + Switch, and DC Battery Management

Specifications:

• Action*: (ON)-OFF-(ON)

• Pole/Throw**: SPDT

• Maximum Amperage***:8A @ 125V AC / 10A @ 12V DC / 8A @ 24V DC / 8A @ 250V AC

• Terminal Type: Quick Connect Tab

• Terminal Size: 0.187" (4.75mm)

• Weight:0.08lb (0.04kg)

*Action () = Momentary ON

**Pole/Throw:
SPST - Single Pole/Single Throw
SPDT - Single Pole/Double Throw
DPST - Double Pole/Single Throw
DPDT - Double Pole/Double Throw

***Maximum Amperage - Maximum amperage ratings are dependent on use of appropriately sized fuses and wire for a given application.
