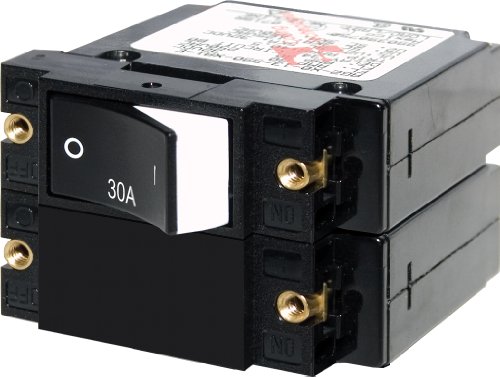

Blue Sea Systems 7574 A-Series Double Pole Raised Rocker Circuit Breaker

The Blue Sea Systems 7574 A-Series circuit breaker combines double pole circuit protection and switching functionality into a single raised rocker switch design. Engineered for marine electrical systems, this magnetic-hydraulic breaker provides reliable overcurrent protection while accommodating the high inrush currents typical of electric motors and marine appliances without nuisance tripping.

Key Features:

• Double pole protection with trip-free design prevents the rocker from being held in ON position when a fault is detected on either pole
• Bi-colored actuator clearly indicates OFF position for enhanced safety
• Direct fit compatibility with Blue Sea Systems 360 panels and SMS panel enclosures for easy installation or retrofitting
• Handles high inrush currents from motors and appliances without false tripping
• CE marked and meets ABYC and USCG standards for marine applications
• Backed by Blue Sea Systems lifetime warranty

Technical Specifications:

• Amperage Ratings: Available in 30A, 32A, and 50A configurations
• Maximum Voltage: 120V AC, 240V AC, 32V DC
• Interrupt Capacity: 1500A @ 240V AC, 3000A (TUV) @ 240V AC, 5000A @ 32V DC
• Breaker Type: Magnetic-hydraulic, trip-free
• Poles: 2 (Double Pole)
• Mounting Screw: #6-32
• Terminal Screw: #10-32
• Actuator Style: Raised rocker with bi-color indication

Ideal for marine electrical systems requiring flexible circuit protection solutions, the A-Series breaker allows boaters to easily adapt their electrical panels as equipment and accessories change over time.
