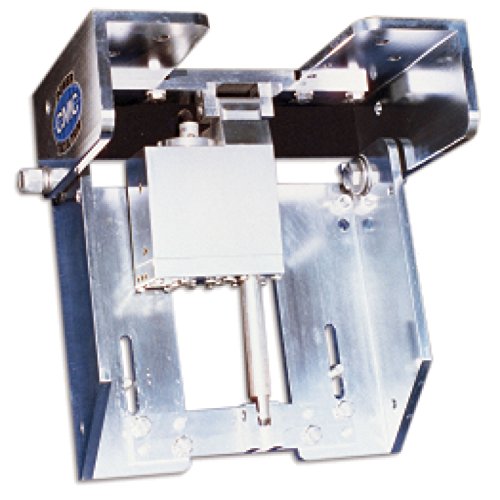

CMC 13001 PT-130 Electric Hydraulic Tilt and Trim with Gauge for Outboards up to 130 HP

The CMC PT-130 Electric Hydraulic Tilt and Trim system delivers fingertip control for outboard motors up to 130 HP, providing superior boat handling, improved speed, better fuel efficiency, and no more back strain from manual motor adjustments. This complete kit includes an integrated trim gauge for precise motor angle monitoring.

Key Features:

• Rated for outboard motors from 10 HP to 130 HP
• Powerful electric hydraulic actuator delivers 7,853 lbs of thrust
• 20 degrees of trim and 90 degrees total tilt and trim range
• 6-inch setback enhances boat stability and propeller performance
• Heavy-duty 1/2-inch 6061-T6 extruded aluminum construction with stainless steel fasteners
• Standard B.I.A. bolt hole pattern fits most outboards without drilling
• Completely waterproof marine-grade hydraulic system
• Sealed, drip-proof dash-mounted trim gauge with waterproof sending unit
• Up-down toggle switch included
• Four stainless steel motor mounting bolts included

The 6-inch setback positions the propeller in cleaner water for better bite and reduced slippage, potentially increasing top-end speed and fuel efficiency. Ideal for pontoon boats where motor access is difficult, the PT-130 allows you to raise the motor with a simple switch when approaching shallow water. An optional adapter kit is available for clamp-on style motors.
