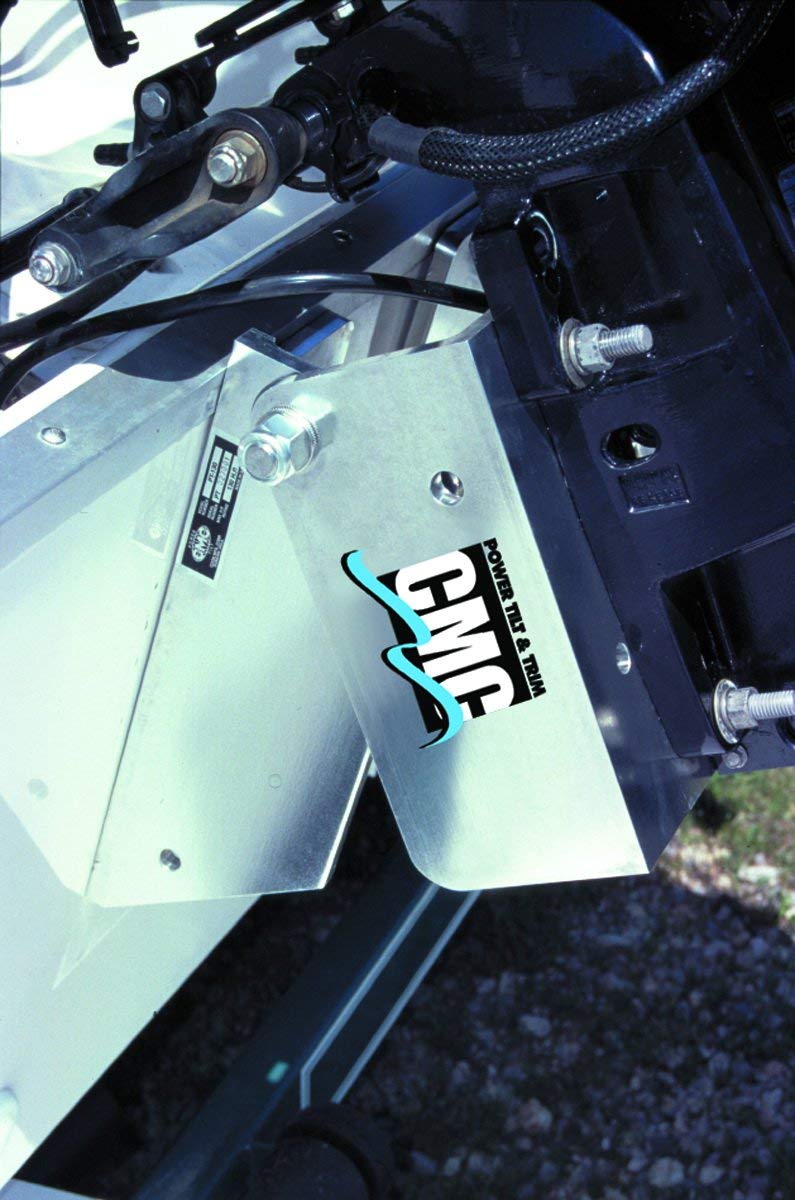

CMC 13002 PT-130 Electric Hydraulic Power Tilt and Trim Without Gauge

The CMC 13002 PT-130 is an electric hydraulic power tilt and trim system designed for outboard motors up to 130 horsepower. This aftermarket system delivers fingertip control of your motor angle, providing improved boat handling, increased speed, better fuel efficiency, and easier operation without the strain of manual tilting.

Key Features:

• Rated for 10 HP through 130 HP outboard motors
• Electric hydraulic actuator rated at 7,853 lbs of thrust
• 6-inch setback enhances boat stability and performance
• 20 degrees of trim adjustment and 90 degrees total tilt and trim range
• Constructed from 1/2-inch 6061-T6 extruded aluminum with stainless steel fasteners
• Standard B.I.A. bolt hole pattern for easy installation
• Includes four stainless steel motor mounting bolts
• Totally waterproof electric hydraulic system
• Compatible with most outboard motors (adapter kit available separately for clamp-on motors)

The PT-130 allows you to tuck your motor in for smoother, faster planing, and once underway, you can adjust the motor angle for optimal performance based on your load and water conditions. This unit does not include a trim gauge but is designed to accept the optional CMC gauge kit. Made from non-ferrous materials for superior corrosion resistance in both saltwater and freshwater environments.
