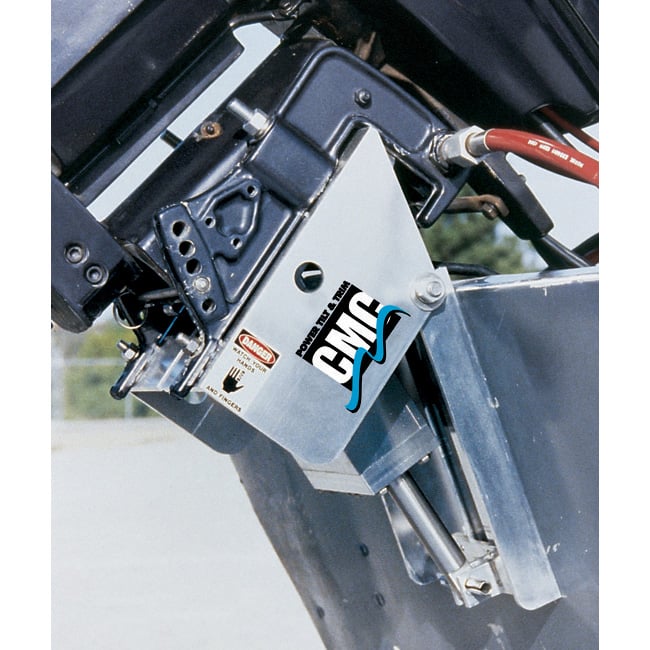

CMC 52100 PT-35 Electric Hydraulic Tilt and Trim for Outboard Motors up to 35 HP

The CMC PT-35 Electric Hydraulic Tilt and Trim system delivers fingertip control for outboard motors up to 35 horsepower, eliminating back strain while improving boat performance and fuel efficiency. With 84 degrees of trim and tilt adjustment, you can easily optimize motor angle for changing load and water conditions, allowing smoother planing and better handling at speed.

Key Features:

• Rated for 35 HP and smaller outboard motors
• 5-1/2 inch setback enhances boat stability and performance
• Constructed from 1/4 inch 6061 T6 extruded aluminum with stainless steel fasteners

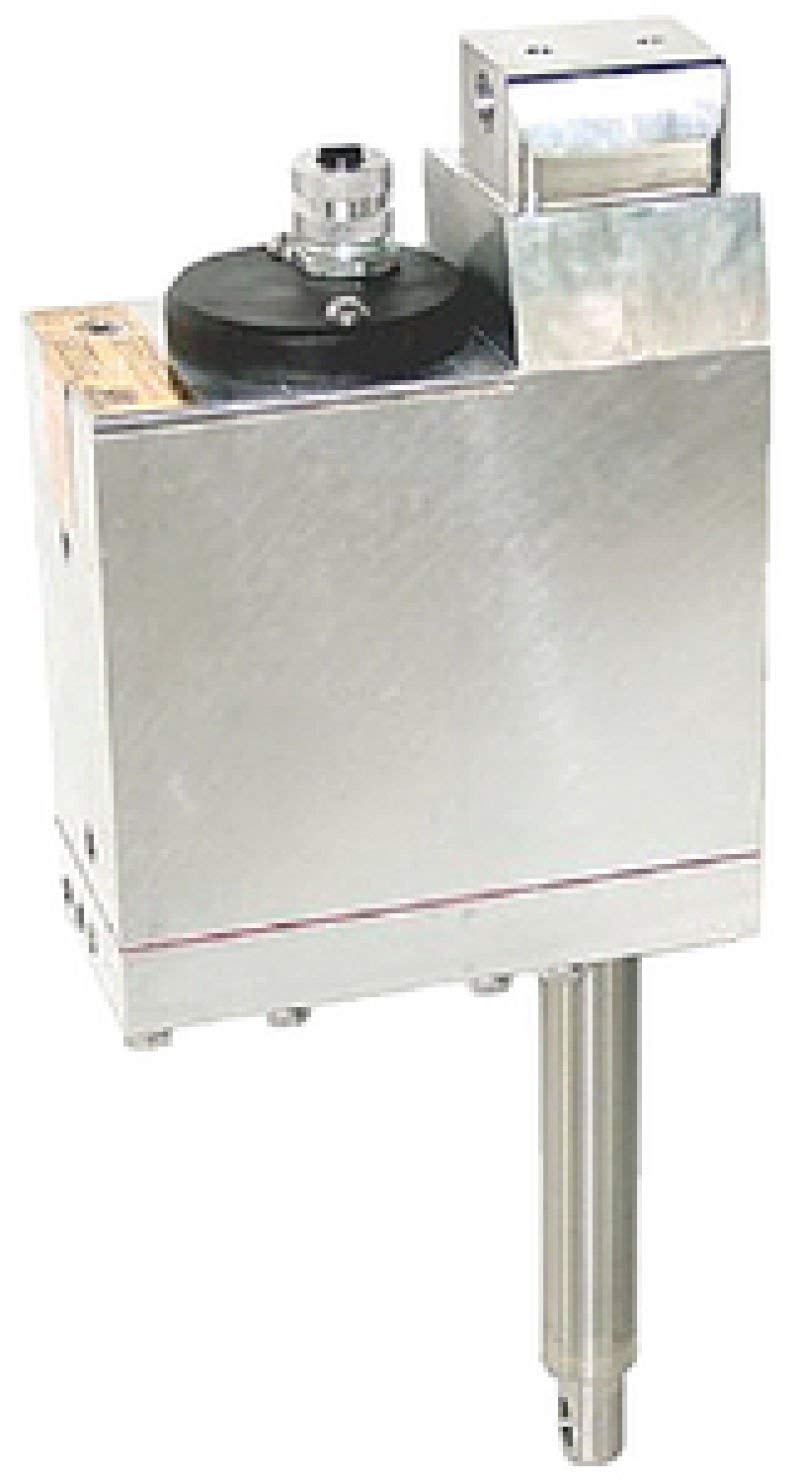

• Waterproof electric hydraulic actuator rated at over 7,800 lbs of thrust
• Accommodates clamp-on or bolt-on motors without adapters
• Weighs only 24 lbs for easy installation
• Compact design at 11-1/2 inches wide

Important Installation Notes: The inside dimension of the motor mounting area is 11 inches - ensure your motor's clamp mounting feet and/or mounting bolts do not exceed this limit. Mounting bolts are not included. The setback design helps props achieve better bite at higher settings, contributing to improved speed and efficiency on the water.
