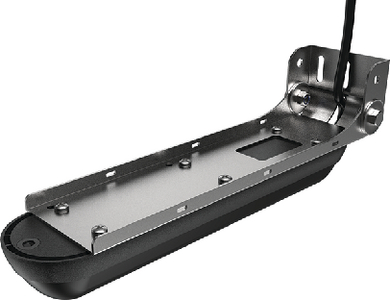

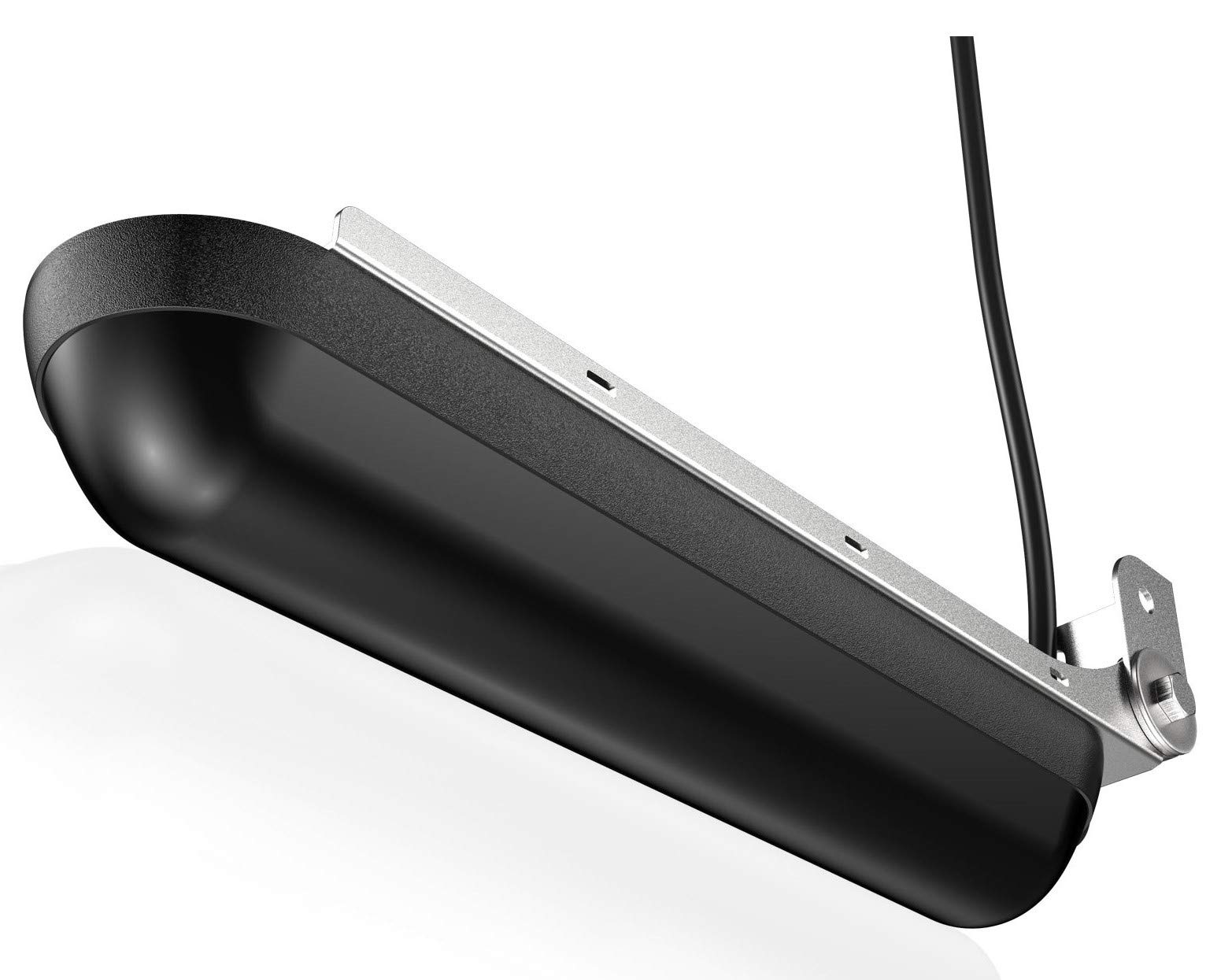

Lowrance 000-14490-001 Active Imaging 2-in-1 SideScan DownScan Transducer

The Lowrance Active Imaging 2-in-1 Transducer (000-14490-001) is a high-performance scanning sonar transducer delivering superior image clarity and resolution for SideScan and DownScan imaging. Designed as a standalone unit, it pairs seamlessly with a separate CHIRP transducer for a complete dual-transducer install, making it ideal for anglers who demand the best in underwater target identification.

Active Imaging technology achieves exceptional detail without sacrificing range by precisely directing SideScan sonar beams to improve both resolution and lateral coverage. The transducer body is constructed from a specialized polymer that acoustically reacts more closely to water, minimizing signal loss during both transmit and receive cycles. Separate sonar elements for SideScan transmit and receive enable an incredibly fast ping rate — and faster pings translate directly to sharper, higher-resolution images.

Key Features:

• Dual Frequency: Operates at 455 kHz and 800 kHz for flexible range and detail options
• SideScan Range: Up to 300 ft side range at 455 kHz; up to 150 ft at 800 kHz
• DownScan Depth: Up to 300 ft (91 m)
• Maximum Operating Speed: 9 knots (10 mph) for both SideScan and DownScan
• Cable Length: 25 ft (7.6 m) with 9-pin connector
• Mounting Options: Transom, flush step, and jackplate mounting
• Output: SideScan imaging, DownScan imaging, and water temperature
• No Extra Hardware Required: Plug-and-play with compatible next-generation displays — no additional modules needed
• Polymer Construction: Specialized housing minimizes sonar signal loss for cleaner, more accurate returns
• Separate Transmit/Receive Elements: Maximizes ping speed and lateral signal strength for improved range and resolution

Operating Specifications:

• Operating Temperature: +5°F to +131°F (-15°C to +55°C)
• Storage Temperature: -22°F to +158°F (-30°C to +70°C)
• Connector: 9-pin

Display Compatibility: Compatible with Lowrance HDS LIVE, Elite Ti series, Simrad NSS evo3, and GO series chartplotter/fishfinder displays.

Whether you're scanning timber-lined creek channels, rocky bottom transitions, or submerged weed lines, the Active Imaging 2-in-1 transducer gives you the detail and range needed to find fish-holding structure faster and with greater confidence.
