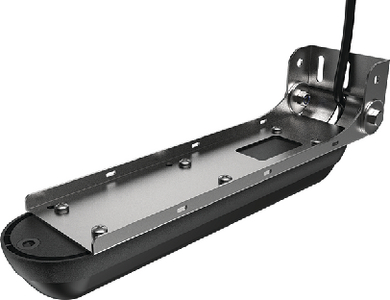

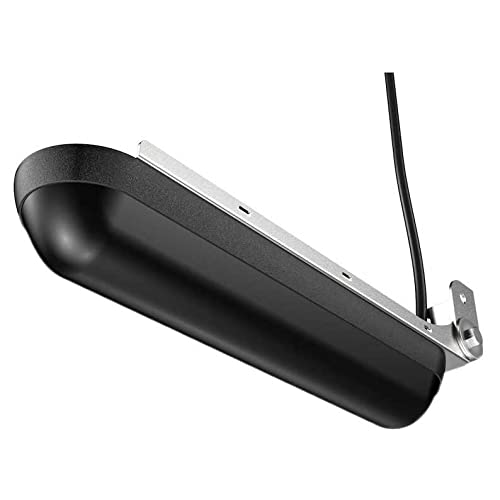

Lowrance 000-14489-001 Active Imaging 3-in-1 Transom Mount Transducer with CHIRP, SideScan & DownScan

The Lowrance Active Imaging 3-in-1 Transducer (000-14489-001) delivers superior underwater clarity by combining Active Imaging scanning sonar with traditional Medium/High CHIRP sonar in a single, easy-to-install transom mount unit. Designed to help anglers pinpoint fish-holding structure — including rockpiles, standing timber, weedbeds, ditches, and drop-offs — this transducer provides high-resolution images of fish and structure at greater range than conventional structure imaging technology.

Key Features:

• Active Imaging Technology: Provides incredibly detailed, high-resolution imaging sonar without sacrificing range by better directing SideScan beams to increase resolution and improve range performance
• 3-in-1 Sonar Coverage: Combines Lowrance CHIRP, SideScan, and DownScan sonar in one transducer for complete underwater coverage
• FishReveal™ Smart Target View: Overlays CHIRP fish arches onto DownScan images, making it easier to distinguish fish from structure and cover
• Dual Imaging Frequencies: Operates at 455 kHz (max range 300 ft) or 800 kHz (max range 150 ft) for flexible depth and detail control
• Medium/High CHIRP Support: Supports 83 kHz (Medium CHIRP) and 200 kHz (High CHIRP) traditional sonar frequencies
• Separate Transmit/Receive Elements: Dedicated SideScan transmit and receive elements enable ultra-fast ping speed for maximum image resolution
• Advanced Transducer Construction: Built from a specialized polymer that reacts to sound waves similarly to water, ensuring no sonar signal is lost during transmit or receive
• No Extra Hardware Required: Plug-and-play compatible with next-generation displays — no additional modules needed
• 25 ft (7.6 m) Cable: Includes a 25-foot cable with 9-pin connector for flexible installation

Specifications:

• Connector: 9-pin
• Cable Length: 25 ft (7.6 m)
• CHIRP Frequencies: 83 kHz / 200 kHz
• Imaging Frequencies: 455 kHz / 800 kHz
• Max Range at 455 kHz: 300 ft
• Max Range at 800 kHz: 150 ft
• Operating Speed (Traditional): Up to 48 knots (55 mph)
• Operating Speed (DownScan/SideScan): Up to 9 knots (10 mph)
• Mount Type: Transom Mount

Compatible with Lowrance HDS Live, HDS Carbon, and Elite Ti2 displays, as well as Simrad NSS evo3 and GO series displays. The Active Imaging 3-in-1 transducer is the ideal single-transducer solution for serious freshwater and saltwater anglers who demand the highest quality sonar imaging without compromise.
