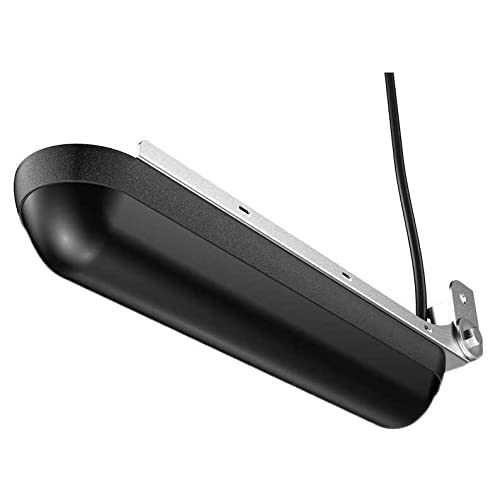

Lowrance 000-14814-001 Active Imaging 3-in-1 Transom Mount Transducer with 6ft Cable

The Lowrance Active Imaging 3-in-1 Transom Mount Transducer (000-14814-001) combines CHIRP sonar, SideScan, and DownScan Imaging into a single, easy-to-install unit. Designed for anglers who demand high-resolution underwater imagery, this transducer delivers superior target separation and detail at ranges beyond traditional structure imaging technology.

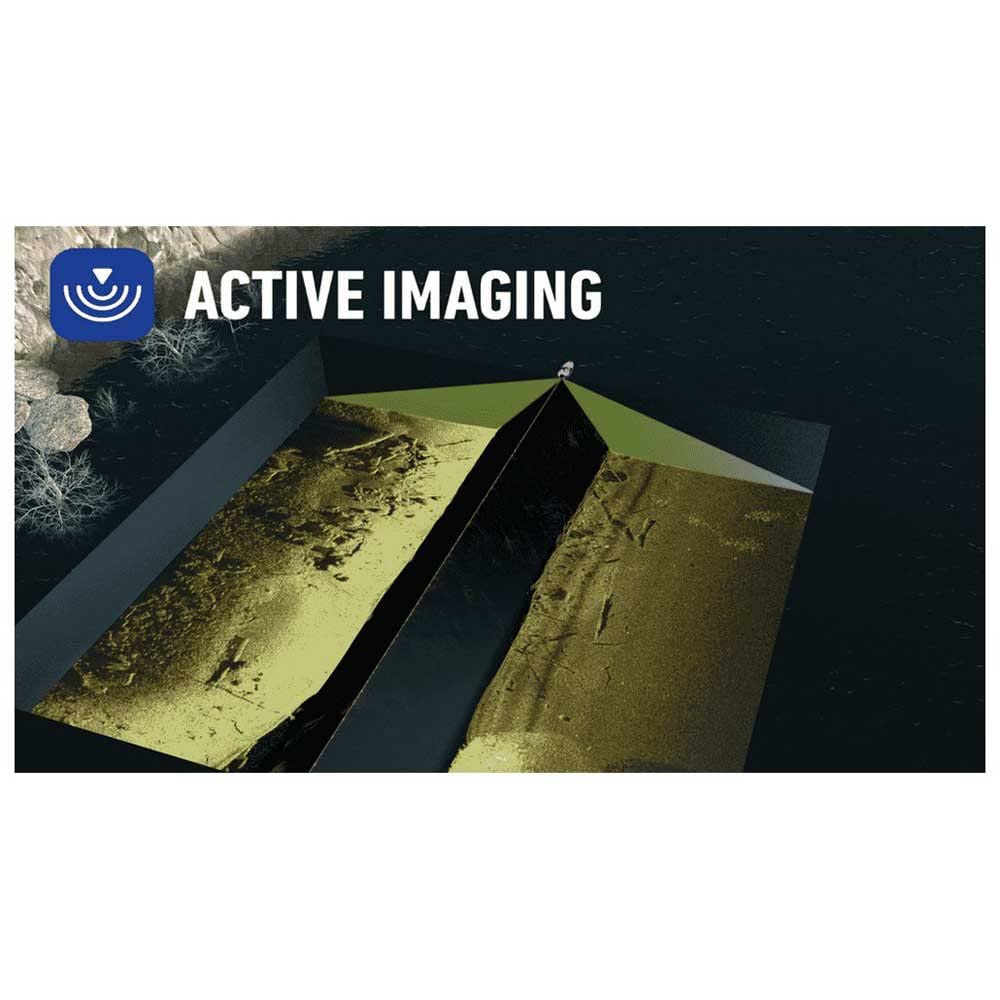

Active Imaging technology provides incredibly detailed, high-resolution sonar without sacrificing range performance. Separate sonar elements for SideScan transmit and receive work together to improve both resolution and side-range performance, helping you locate fish-holding structure like rockpiles, standing timber, weedbeds, ditches, and drop-offs from greater distances.

Key Features:

• 3-in-1 design combines Lowrance CHIRP, SideScan, and DownScan Imaging in one transducer
• Supports Medium and High CHIRP at 83/200 kHz for traditional depth sounding
• 455/800 kHz SideScan and DownScan frequencies for detailed structure imaging
• FishReveal™ Smart Target View overlays CHIRP fish arches on DownScan images for easier fish identification

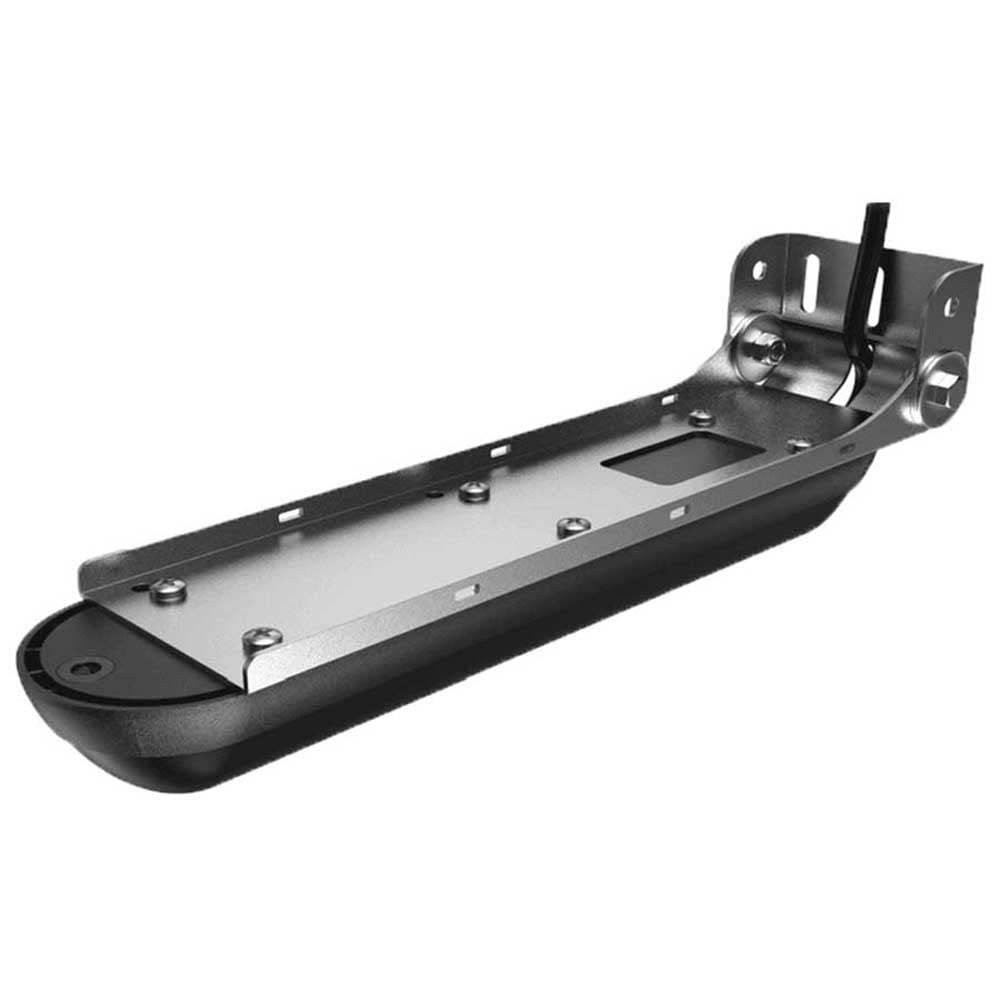

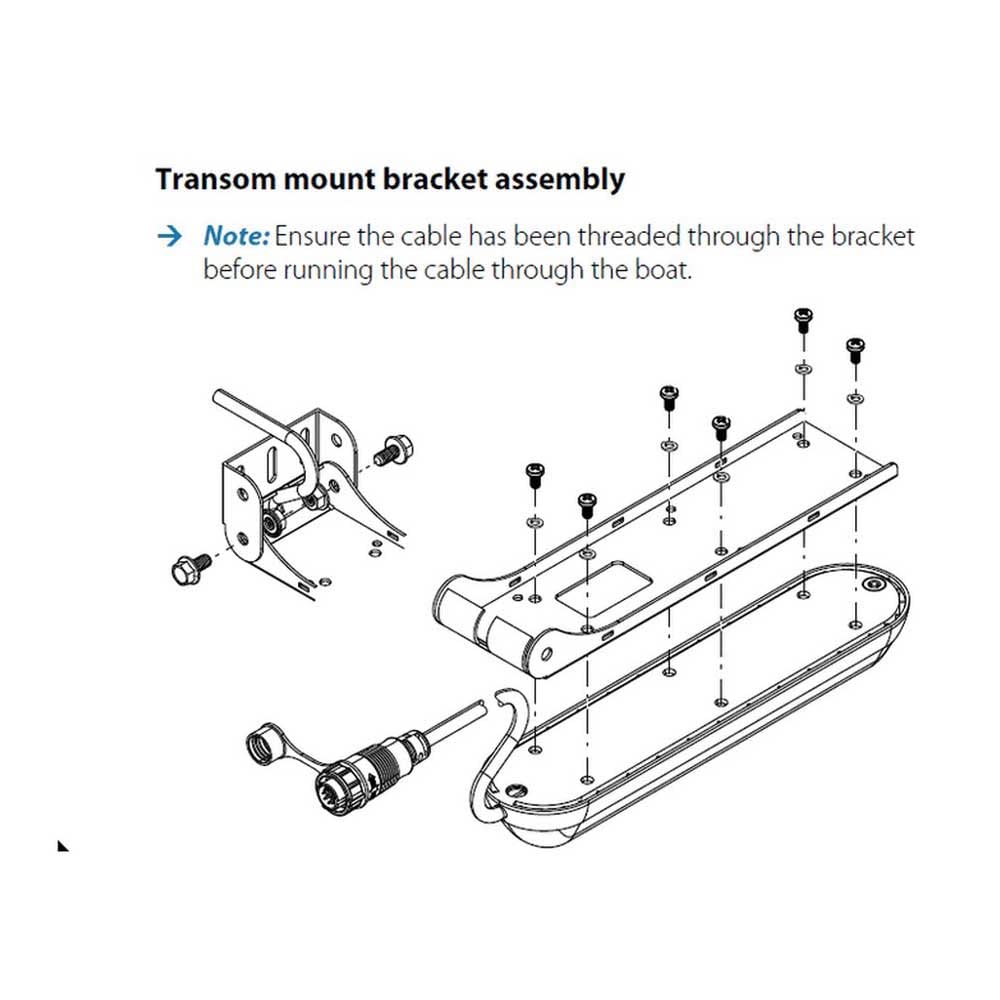

• Plastic transom mount bracket accommodates hull deadrise from 0° to 90°
• Measures depth and water temperature
• Includes 6-foot cable — ideal for dual transducer installations
• Compatible with Lowrance HDS LIVE, HDS Carbon, Elite Ti2, EliteFS, and Simrad NSS evo3/3S and GO Series displays

Maximum Depth Performance:

• Traditional CHIRP (200 kHz / High CHIRP and 83 kHz / Medium CHIRP): up to 1,000 ft (305 m)
• DownScan Imaging: up to 300 ft (91 m)

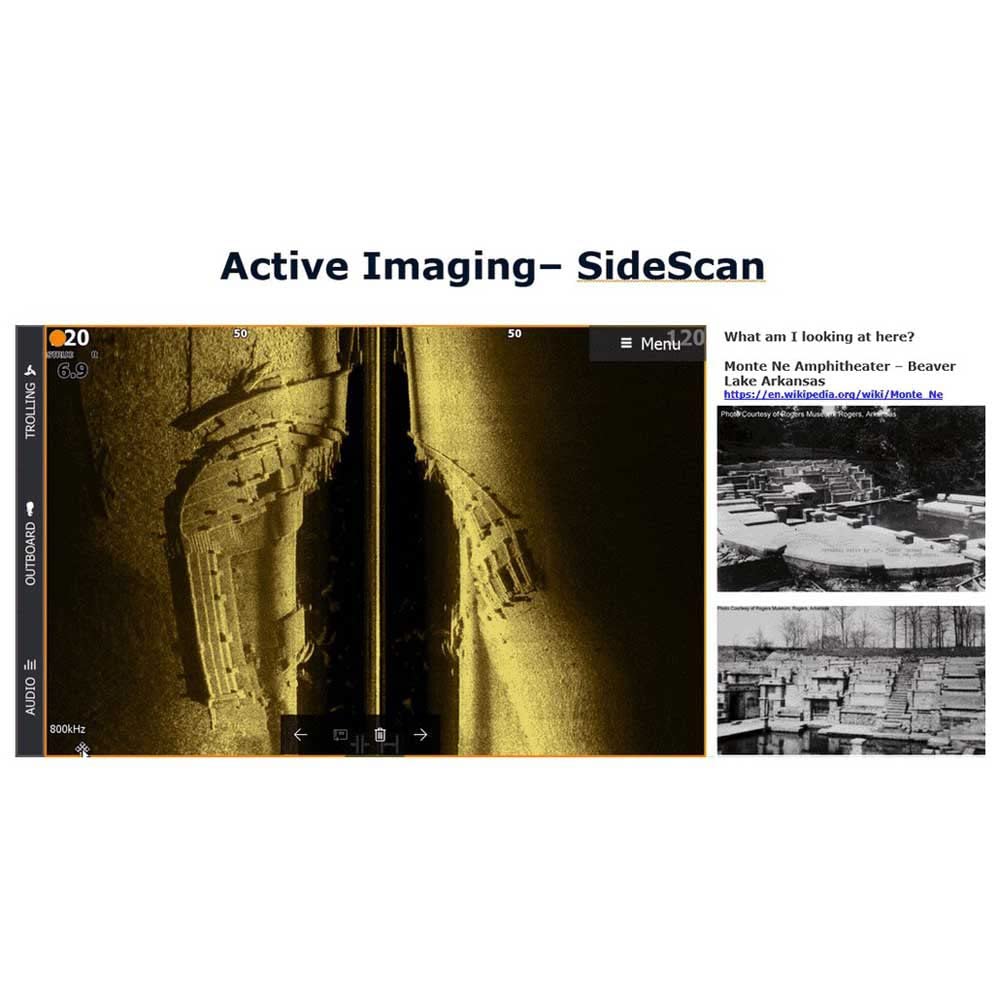

• SideScan at 455 kHz: up to 300 ft (91 m) side range
• SideScan at 800 kHz: up to 150 ft (46 m) side range

Operating Speed:

• Traditional CHIRP: up to 48 knots (55 mph)
• DownScan and SideScan: up to 9 knots (10 mph)

The 6-foot cable length makes this variant especially well-suited for dual transducer setups where routing flexibility is needed. The plastic transom mount construction is durable and lightweight, and the wide deadrise compatibility ensures a proper installation on virtually any hull design.
