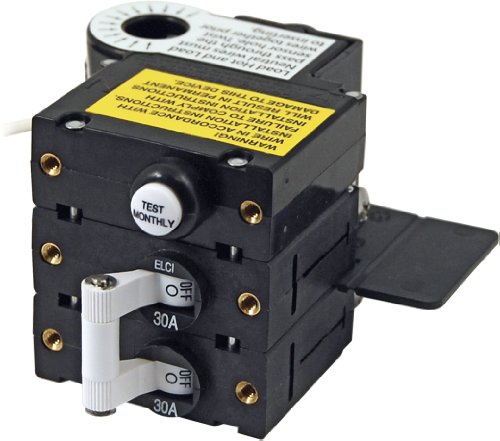

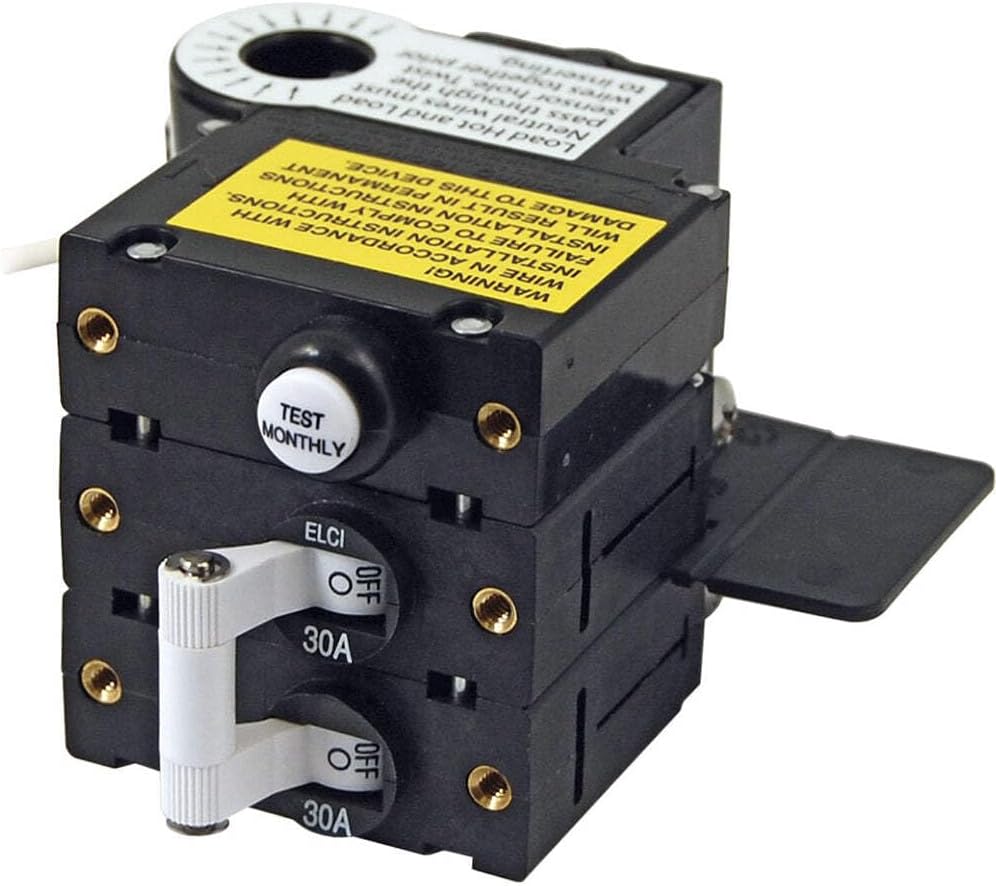

Blue Sea Systems 3106100 ELCI Main Circuit Breaker 30A 120V Double Pole

The Blue Sea Systems 3106100 A-Series ELCI (Equipment Leakage Circuit Interrupter) Main Circuit Breaker provides comprehensive electrical protection for marine AC systems. This double pole 30A breaker combines circuit protection with ground fault detection, automatically tripping on short circuits, overloads, or leakage to ground at 30mA threshold.

Key Features:

• Triple protection: trips on short circuit, overload, or ground leakage
• Equipment Leakage Circuit Interrupter (ELCI) technology with 30mA trip threshold
• Front panel mount design for integration into power distribution panels
• Ignition protected for safe use in marine environments
• Magnetic hydraulic trip-free operation for reliable performance
• White toggle actuator for easy identification and operation

Technical Specifications:

• Amperage Rating: 30A
• Voltage: 120V AC per pole (240V AC maximum)
• Poles: 2 (Double Pole)
• Interrupt Capacity: 5,000A
• Leakage Trip Current: 30mA
• Circuit Breaker Type: Magnetic Hydraulic - trip free
• Operating Temperature Range: -35°C to 65°C (-31°F to 149°F)
• Color: White
• Ignition Protection: Yes

Ideal for marine AC power distribution systems requiring both overcurrent and ground fault protection. The A-Series ELCI breaker meets modern safety standards for protecting people and equipment from electrical hazards.
