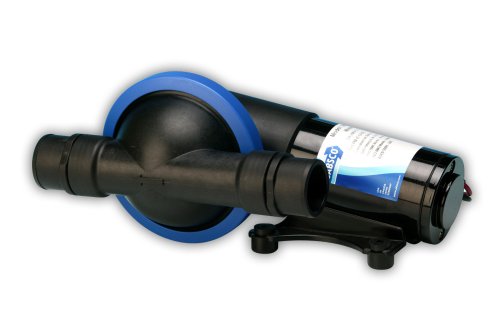

Jabsco 50890-1100 Filterless Waste Pump 24V 5 GPM 1.5 Inch Single Diaphragm

The Jabsco 50890-1100 is a robust filterless waste pump designed for marine sanitation systems. This heavy-duty pump efficiently handles sink, shower, and black waste with a powerful single diaphragm design that eliminates the need for filter maintenance.

Key Features:

• Flow rate up to 5 GPM (19 liters/minute) with maximum 13-foot discharge head
• 1.5-inch port connections for superior solids handling capability
• Self-priming up to 9.5 feet of vertical lift
• Multi-positional ports allow flexible mounting configurations
• Rated for up to 30 minutes of continuous operation
• Shrouded mechanical components for enhanced safety
• 12V DC operation with 7-amp draw, 5-amp fuse recommended

Specifications:

• Voltage: 24V DC
• Current Draw: 2.5 amps maximum, 7 amps rated
• Hose Connection: 1.5 inch (38mm) bore
• Dimensions: 10.9 inches long × 6.3 inches wide × 5.2 inches high
• Weight: 6.7 lbs

This filterless design eliminates clogging issues common with traditional waste pumps, making it ideal for demanding marine applications where reliability is critical. The single diaphragm construction provides robust performance while maintaining a compact footprint.
