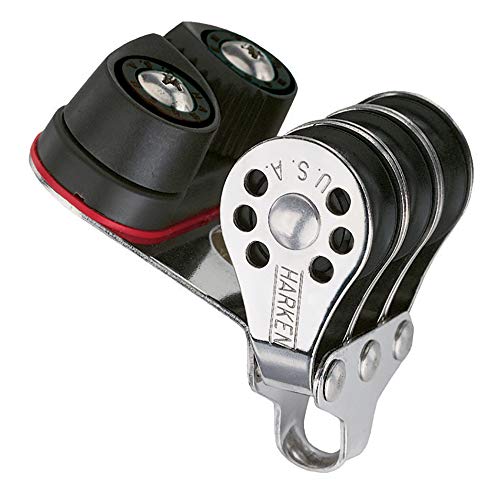

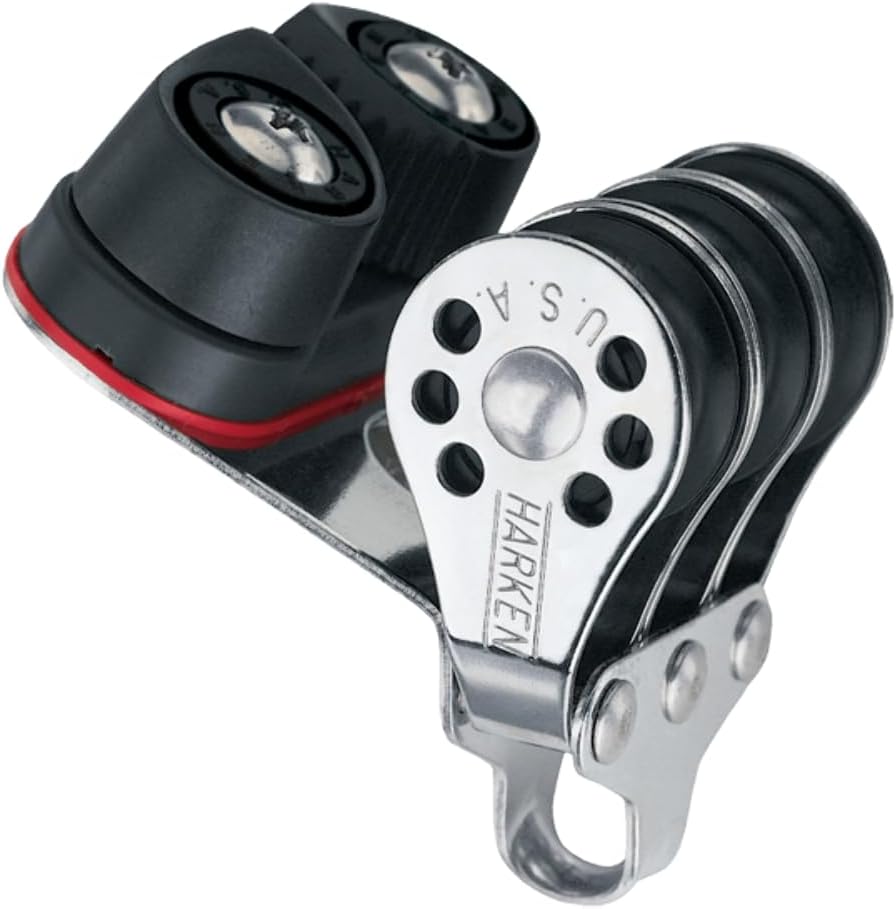

Harken 230 22mm Triple Micro Block with Cam Cleat

The Harken 230 is a low-friction triple micro block with an integrated cam cleat, designed for efficient line control in a compact, lightweight package. This versatile block features three sheaves and a cam cleat mechanism, making it ideal for sailboat control lines, dinghies, and small craft rigging applications where space is limited.

Key Features:

• Triple sheave configuration with integrated cam cleat for secure line holding
• Low-friction sheave design for smooth line operation and reduced wear
• Compact 51mm (2 inch) length fits in tight rigging spaces
• Lightweight construction at just 99 grams (3.5 oz)
• 500 lb maximum working load with 1200 lb breaking strength
• Accommodates lines up to 6mm (1/4 inch) diameter

Specifications:

• Sheave Diameter: 22mm (7/8 inch)
• Overall Length: 51mm (2 inches)
• Weight: 99g (3.5 oz)
• Maximum Line Diameter: 6mm (1/4 inch)
• Maximum Working Load: 227kg (500 lbs)
• Breaking Load: 544kg (1200 lbs)

Harken micro blocks are renowned for their durability and performance in marine environments, offering reliable line control for a wide range of sailing applications.
